Product Details:
|
| Color: | Black And Orange | Packing: | Color Box |
|---|---|---|---|
| Weight: | Approx 1920g | Power: | 1.5V*4 |
| Dimension: | 350mm×180mm×55mm | Resolution: | AC 0.1mA |
| Clamp Size: | 108mm×148mm | Product Name: | Leakage Clamp Meter |
| High Light: | VICTOR 7100 Leakage Current Clamp Meter,Cable Leakage Current Clamp Meter,VICTOR 7100 ac leakage clamp meter |
||

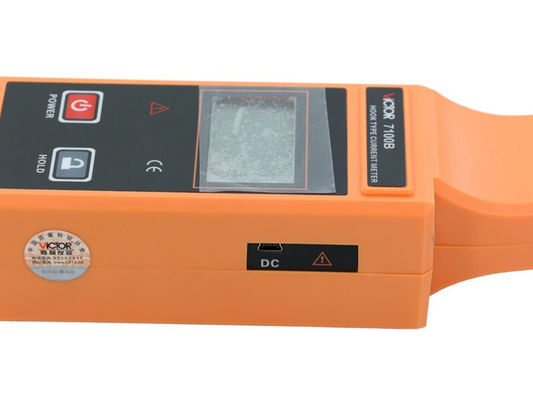

Super Large Caliber Cable Leakage Current Clamp Meter dynamic display
VICTOR 7100/7100A Superlarge Caliber Leakage Clamp Meter with New CT Technology Cable leakage and transformer grounding flat steel leakage
Introduction
7100 series of Superlarge Caliber Leakage Clamp Meter is well designed and manufactured for measuring AC leakage current, current, voltage, adopt the latest CT technology and digital integrated technology. Its large caliber 108mm×148mm can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires. It has the biggest caliber and widest current range all over the world, particularly suitable for leakage current measurement of cable and transformer earth steel. Full automatically and LCD display, all the data are displayed in the screen, which is very clear and convenient. The meter is widely used in electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.
7100 series of Superlarge Caliber Leakage Clamp Meter’s clamp core is made of special alloy, adopt the latest magnetic shielding techniques, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. The meter can store 99 sets of data, with RS232 interface, upload stored data to the computer through the system software, implementing online real-time monitoring, historical inquires, dynamic display. With the function of historical data read, preserve, print, and backlight, data hold, etc. It is a necessary tool for electrical safety testing.
Technical Data
| VICTOR 7100 | VICTOR 7100A | |
| Range | AC 0.0mA～3200A | AC 0.0mA～4000A |
| Resolution | AC 0.1mA | AC 0.1A |
| Measurement Accuracy (23℃±3℃, below 70%RH, measured wire at the center of the clamp) |
AC 0.0mA～499A ±2%±5dgt | |
| AC 500A～999A ±3%±5dgt | ||
| AC 1000A～2999A ±4%±5dgt | ||
| AC 3000A～4000A ±5%±5dgt | ||
| Power | 6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours) | |
| Weight of Meter | 1.5kg (with batteries) | |
| Dimension | Length 350mm* width 180mm * thickness 55mm | |
| Clamp Size | 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires) | |
| Sample Rate | About 2 times/second | |
| Frequency | 50Hz ,60Hz automatic identification | |
| Communication Wire | RS232 communication wire, 1.8m | |
| Data Storage | 99 sets, “FULL” symbol indicate the memory is full | |
| Data Hold | “HOLD” symbol appears | |
| Overflow | “OL” symbol appears | |
