|Color:||Orange And Black||Size:||105*164*70mm|
|Produce Name:||Digital Insulation Tester||Model No.:||60B+|
|Product Packing:||Color Box||Packing Details:||28pcs.carton; Carton Size:46.5*31.7*50.6cm; 26.6kg/carton|
1000V Digital Earth Resistance Tester,
500V Digital Earth Resistance Tester,
1000V Digital Resistance Tester

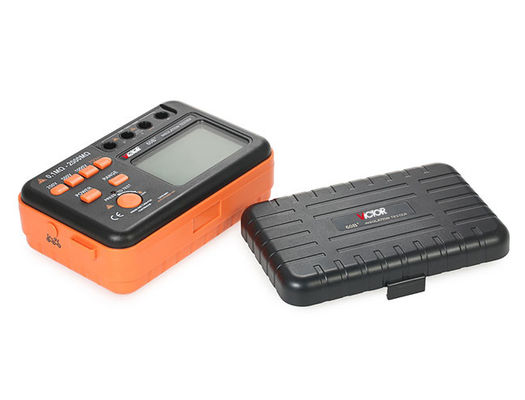

60B+ Insulation Resistance Tester Digital Megohmmeter 1000V With Large LCD Display Handheld Easy To Operation
This instrument adopts the DC Voltage convertor of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 250V/500V/1000V DC Voltage. It uses digital bridge to make the insulation resistance measurement had the features of user-friendly, high extent range, backlight display, data hold and auto power off. The whole instrument is stylish and superior grade in appearance and high stable in performance, it can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
2, General Property
(1) Display:84.8×59.8mm LCD display, max.“1999”.
(2) Over range indicator:display“1”.
(3) Power:5# battery LR6 (1.5V) ×6 (or external AC adaptor), no battery indicator.Auto power off (approx. 15miutes after turning on
(4) Power consumption:consumption is less than 300mw at unload measurement.
(5) Operation environment:Temperature 0°C—40°C. Relative humidity 30%RH—85RH.
(6) Dimension:175(L) ×110(W) ×70(D) mm.
(7) Weight:630 g (including batteries).
4. Technical Data
