Product Details:
|
| Color: | Blue And Black | Size: | 180*90*47mm |
|---|---|---|---|
| Product Name: | Voltage/mA Source | Model No.: | VICTOR 04+ |
| Material: | Plastic, Metal, Silica Gel | Packing Details: | 10pcs/Carton; Carton Size: 39.5*38.5*26cm |
| Display: | Large LCD Display | Accuracy: | 0.05% Accuracy |
| High Light: | LCD Display Multifunction Process Calibrator,0.05% accuracy Multifunction Process Calibrator,24V Multifunction Process Calibrator |
||

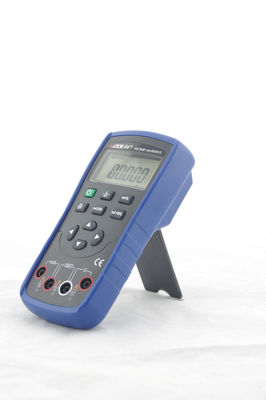

LCD Display Multifunction Process Calibrator
VICTOR 04+ Temperature calibrator Voltage/mA Source multifunction Input and Source calibrator Large LCD display with 0.05% accuracy
VICTOR 04+ V /mA SOURCE
Output with basic accuracy of 0.05%. 5 digits display for measured value.
Analogue output: DC voltage, DC current, Simulator transmitter etc.
Provide 24V loop voltage source.
Current displayed in Am and Am% format. The step, zero and full output provided with a fast operation.
Adjustable output gain, on/off state output, easy in operation.
Built-in self-tests with closed-case calibration (no internal calibration adjustment).
General Feature
|
Output |
Range |
Output range |
Resolution |
Accuracy |
Illustration |
|
DC voltage DCV |
10V |
0.000～11.000V |
0.001V |
0.05%+2 |
Max. output current 5mA |
|
DCA |
20mA |
0.000～22.000mA |
0.001mA |
0.05%+4uA |
20mA Max. load 1KΩ |
|
simulate transmitter(sinking current) |
-20mA |
0.000～-22.000mA |
0.001mA |
0.05%+4uA |
20mA Max. load 1KΩ Note: power supply range: 5～25VDC |
|
Loop power |
24V |
|
|
±10% |
Max. output current 25mA |
|
: |
two 1.5V alkaline batteries(LR6) |
|
l power consumption |
: |
about 400mA /3V, in condition of 1kΩload and 20mA output |
|
: |
30V(within terminals or between terminal and earth ground) |
|
: |
0°C～50°C |
|
: |
≤ 80%RH |
|
: |
≤ - 10°C～55°C |
|
: |
≤ 90%RH |
|
: |
0.1×(dedicated accuracy)%/℃(5℃～18℃,28℃～40℃) |
|
: |
180(L)×90(W)×47(D)mm(with protector) |
|
: |
about 500g |
|
: |
User’s Manual, industrial testing lead CF-36 (clips for probe) |
|
: |
complies with IEC1010 (safety standard issued by International Electrician Committee) |
