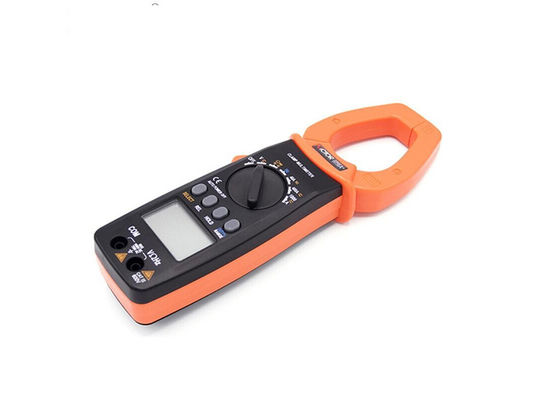

VICTOR 6056E Handheld 3 3/4 3999 Counts 1000V/600A DC/AC Digital Clamp Meter 30MHz Frequency Capacitance Resistance

1. General

The meter is a reliable safe and 3 3/4 DC/ACA digital clamp meter with stable performance. Centered on the double-integrating A/D conversion of large-scale integrated circuit, overload protect circuit with full range and unique exterior design, thus is a dedicated electrotechnical meter with excellent performance.

It use to measure such parameters as DCV, ACV, DCA, ACA, resistance, diode, continuity, frequency etc. Please pay attention to the safety information and the content of warning etc. on the manual, and comply all the warning and notices.

2. Unpacking Check

After unpacking, please carefully check if the following items are missing or damaged. If yes, please contact the distributor immediately.

digital clamp multimeter 1set

User’s manual 1piece

Test leads 1set

Bag 1piece

9V battery 1piece

3. General Features

1-1. Display mode: LCD display;

1-2. Max. display: 3999(3 3/4)bit auto polar display or unit display;

1-3. Measurement mode: double-integrating A/D conversion;

1-4. Conversion rate: 3 times/s;

1-5. Over-range display: “OL” display at highest bit;

1-6. Low battery display;

1-7. Auto power-off function;

1-8. Max. clamp jaw opening size: dia. 55mm;

1-9. Max. size of predicted current lead: dia.47mm;

1-10. Effect of electromagnetic field: If used for devices near electromagnetic field, unstable or incorrect readings may be displayed;

1-11. Error caused by test position: When measuring current, please place the source to be tested in the center of the clamp jaw; otherwise, certain additional error will occur;

1-12. Operating environment: (0~40)℃, RH＜80%;

1-13. Storage environment: -10~50℃, RH＜80%;

1-14. Power supply: 9V battery;

1-15.Volume(dimensions): 255mm×90mm×46mm (L×W×H) ;

1-16. Approx. 388g (battery included).

4. Technical Features

   Accuracy: ± (a% of reading + digit); to ensure accuracy, ambient temperature: (23±5)℃, RH＜75%; calibration warranty period as one year  from  ex-works date.

Instructions and ambient restriction: use for outdoors Max. height: 2000m

Safety: IEC 61010, CATII 600V, CATIII 300V

Public nuisance level: 2

Operating temperature and humidity:

0℃ to 30℃ (less than R.H 80%);

30℃ to 40℃ ( less than R.H 75%);

40℃ to 50℃ (less than R.H 45%);

Storage temperature and humidity:

-20℃ to +60℃ (less than R.H 80%)
