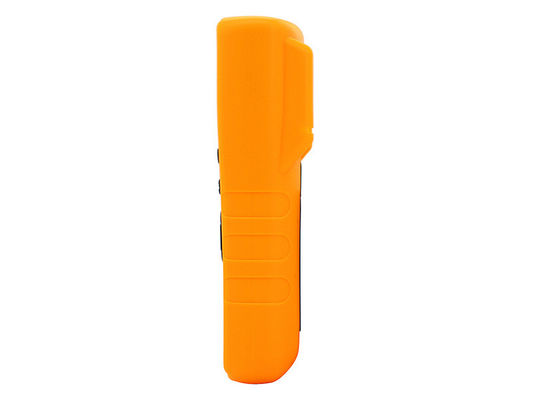

VICTOR 05+ Loop Calibrator high precision Voltage Current Simulation transmitter handheld automatic signal generator

VC05⁺ LOOP Calibrator

• Measurement with basic accuracy of 0.02%, output with basic accuracy of 0.05%. 5 digits display for measured value.
• Measurements: DC current, DC voltage as well as providing 24V loop voltage and measuring current simultaneously.
• Analogue output: DC current and simulating transmitter.
• Providing loop voltage supply of 24V.
• Current displayed in Am and Am% format.
• The step, zero and full output provided with a fast operation.
• Output signal generates a auto ramp current output (4～20mA) at both fast and slow speeds.
• The step, zero and full output provided with a fast operation.
• Adjustable output gain.
• Built-in self-tests with closed-case calibration (no internal calibration adjustment).

General specification

• LCD: 61.8×29.4mm
• Operating requirements:

• Operating temperature: 0 to 50ºC.
• Operating humidity: ≤85%RH.

• Storage requirements:

• Storages temperature: -25 to 60ºC.
• Storage humidity: ≤90%RH (non-condensing).

4. certified as compliant to IEC1010 provisions(Safety standard issued by International Electro technical Commission)

• certified as compliant to IEC / ENEN61326-1 EMC standard
• Certified as compliant to IEC 60068-2-64:2008,IEC 60068-2-32:2008 with respect to vibration.
• 2×1.5AA-size alkaline batteries, automatic power-off.
• Seize and weight: 180×90×47mm, about 500g.
• Accessories: a pair of test leads.
• Options: TAS-U-5.
