VICTOR 01S Temperature Signal Generator Temperature Source process calibrator multimeter

Large Image : VICTOR 01S Temperature Signal Generator Temperature Source process calibrator multimeter

Product Details:

Place of Origin:	CHINA
Brand Name:	VICTOR
Certification:	CE ROHS
Model Number:	01S

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	USD115/pc
Packaging Details:	10pcs/Carton; Carton Size: 39.538.526cm; 10KG/carton
Delivery Time:	5 to 30 days
Payment Terms:	T/T, Western Union, L/C, Paypal
Supply Ability:	3000pcs available

Contact Now

VICTOR 01S Temperature Signal Generator Temperature Source process calibrator multimeter

Description

Color:	Blue Or Orange And Black	Size:	1809047mm
Product Name:	Temperature Source	Model No.:	VICTOR 01S
Material:	Plastic, Metal, Silica Gel	Packing Details:	10pcs/Carton; Carton Size: 39.538.526cm
Accuracy:	0.05% Accuracy	Weight:	Approx. 900 G (including Batteries)
High Light:	VICTOR 01 Multifunction Process Calibrator , CE Multifunction Process Calibrator , Pt1000 Process Calibrator

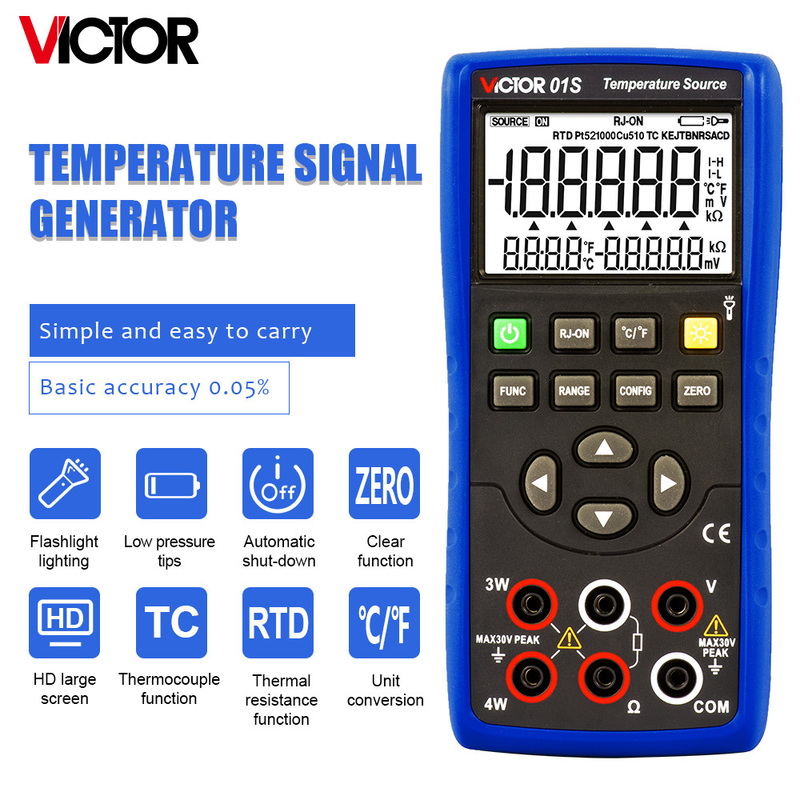

VICTOR 01S Multifunction Process Calibrator 8 Types Thermocouple

VICTOR 01S Temperature Source Multifunction Process Calibrator 0.05%. 5 Digits Display 8 Types Thermocouple

VC01STEMPERATURE SOURCE

Basic characteristics of the product

Analog output characteristics

Basic functions

DC voltage DCV, resistance OHM, thermocouple TC, thermal resistance RTD

The maximum output accuracy is 0.05% and the output display is 5 digits.
Output settings can be manually increased or decreased by position.
H/L settings are available for OHM excitation current.
The output temperature value and the corresponding temperature signal are displayed on the same screen.

It has a built-in high-precision temperature sensor for high-precision cold-end compensation.

Thermocouple cold-end compensation can be set, including manual compensation, automatic compensation, compensation access disconnection, etc.

It has maintenance setup functions, including

Auto power-off, backlight, flashlight, etc.

Other

The segment code is displayed on an LCD with a white backlight.
It has a LED flashlight for lighting.

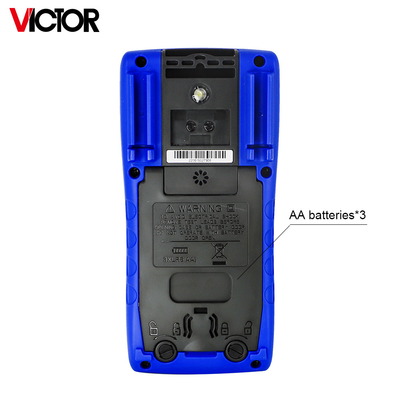

It is powered by 3 AA battery cells. The battery compartment door is convenient for battery replacement. Low-battery detection is available.
It is small, firm, reliable, suitable for field use, and cheap.
User-optional large-suction magnetic sling is provided.

II. Basic function and performance of the product (technical index)

Analog output function [Applied within one year after calibration, 23℃±5℃, 20-70% RH, accuracy=± (% set value +% reading)]

Output function	Range	Output range	Resolution	Accuracy		Remarks:
DC voltage DCV	100mV	-10.000mV~110.00mV	0.01mV	0.05%+0.03mV		Maximum output current: 1mA
DC voltage DCV	1V	-0.1000V~1.1000V	0.0001V	0.05%+0.3mV		Maximum output current: 5mA
Ohm OHM	400Ω	0~400.0Ω	0.1Ω	0.05%+0.2Ω		The excitation current is ±0.1~±5mA Maximum output voltage 2V When the excitation current is ±0.1~0.5mA, additional error of 0.1Ω is added The accuracy does not include lead resistance
Ohm OHM	4KΩ	0~4.000KΩ	1Ω	0.05%+2Ω
Thermocouple TC	R	0°C～1767°C	1°C	0～100℃ 10～1767℃ 0～100℃ 100～1767℃	1.5℃ 1.2℃ 1.5℃ 1.2℃	Use ITS-90 temperature scale The accuracy does not include the error of cold junction compensation The accuracy does not include sensor inaccuracy The accuracy does not include the influence of thermoelectric potential R: Platinum Rhodium 13- Platinum S: Platinum Rhodium 10- Platinum K: Nickel chromium - nickel silicon E: Nickel chromium - copper nickel (constantan) J: Iron - copper nickel (constantan) T: Copper - nickel (constantan) N: Nickel chromium silicon nickel silicon B: Platinum Rhodium 30 - Platinum A: Tungsten rhenium 5- Tungsten rhenium 20 C: Tungsten rhenium 5- Tungsten rhenium 26 D: Tungsten rhenium 3- Tungsten rhenium 25
	S	0°C～1767°C	1°C	0～100℃ 10～1767℃ 0～100℃ 100～1767℃	1.5℃ 1.2℃ 1.5℃ 1.2℃
	K	-200.0°C～1372.0°C	0.1°C	-200.0～-100.0℃ -100.0～400.0℃ 400.0～1200.0℃ 1200.0～1372.0℃	0.6℃ 0.5℃ 0.7℃ 0.9℃
	E	-200.0°C～1000.0°C		-200.0～-100.0℃ -100.0～600.0℃ 600.0～1000.0℃	0.6℃ 0.5℃ 0.4℃
	J	-200.0°C～1200.0°C		-200.0～-100.0℃ -100.0～800.0℃ 800.0～1200.0℃	0.6℃ 0.5℃ 0.7℃
	T	-250.0°C～400.0°C		-250.0～400.0℃	0.6℃
	N	-200.0°C～1300.0°C		-200.0～-100.0℃ -100.0～900.0℃ 900.0～1300.0℃	1.0℃ 0.7℃ 0.8℃
	B	600°C～1820°C	1°C	600～800℃ 800～1820℃	1.5℃ 1.1℃
	A	0°C～2500°C	1°C	0～1600℃ 1600～2000℃ 2000～2500℃	2.0℃ 2.2℃ 2.4℃
	C	0°C～2310°C	1°C	0～1600℃ 1600～2000℃ 2000～2310℃	2.0℃ 2.2℃ 2.4℃
	D	0°C～2310°C	1°C	0～100℃ 100～270℃ 270～1200℃ 270～2310℃	2.6℃ 2.4℃ 2.2℃ 2.4℃
Thermal resistance RTD	Pt100 385	-200.0°C～800.0°C	0.1°C	-200.0～0.0℃ 0.0～400.0℃ 400.0～800.0℃	0.3℃ 0.5℃ 0.8℃	Use Pt (385) temperature scale The excitation current is ±0.1~±5mA Maximum output voltage 2V When the excitation current is ±0.1~0.5mA, additional error of 0.1Ω is added The accuracy does not include lead resistance The accuracy does not include the influence of thermoelectric potential Support pulse transmitters and PLCs with pulse times as short as 10ms
	Pt200 385	-200.0°C～630.0°C		-200.0～100.0℃ 100.0～300.0℃ 300.0～630.0℃	0.8℃ 0.9℃ 1.0℃
	Pt500 385	-200.0°C～630.0°C		-200.0～100.0℃ 100.0～300.0℃ 300.0～630.0℃	0.4℃ 0.5℃ 0.7℃
	Pt1000 385	-200.0°C～630.0°C		-200.0～100.0℃ 100.0～300.0℃ 300.0～630.0℃	0.2℃ 0.5℃ 0.7℃
	Cu50	-50.0°C～150.0°C		0.6℃

Other characteristics:

Uncertainty includes standard uncertainty, hysteresis, nonlinearity, repeatability, and typical long-term stability over the period mentioned (K = 2).
Maximum applied voltage at input end: about 30Vpk; Maximum applied current at input end: about 25mA
Load characteristics: capacitive load ≥0.01uF (DCV/OHM/TC/RTD/FREQ); Inductive load ≥ 0.01uF 100uH (DCA)

Output load affects DCmV (0.001% full scale + 1nV)/mA; DCV (0.001% full scale + 1nV)/mA

The temperature range of internal temperature compensated sensor RJC is -10 to 50°C. The temperature measurement accuracy at 18 to 28°C is ±0.5°C, and the temperature measurement accuracy at other temperature is ±1°C. Cold end compensation time is 10S/ times.
Temperature coefficient: 0.1 × basic accuracy/℃ (temperature range < 18℃ or > 28℃)
