3999 Counts Auto Ranging Digital Multimeter With Usb Output LCD Display

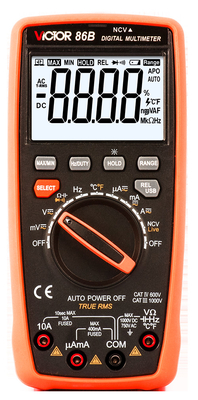

VICTOR 86B Auto Range Digital Multimeter 3999 counts 3 3/4 digital Large LCD Display instrument with USB interface Capacitance

1. General

The instrument is a high performance, high accuracy, 3 3/4 digit multi-meter, it uses the LCD with 33mm high figure to make the reading clear, the display simple and the operation convenient.The instrument can measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Duty Circle, Transistor, Diode and Continuity test; And it also has the features of Bar Graph, Unit Indication, Data Hold, Relative Value Measurement (REL), USB Interface, AUTO/MANUAL range selection, Auto Power Off and Alarm Buzzer. The instrument adopts the directly driven 4 digits microprocessor and dual-integral A/D converter, which provide the high solution and high accuracy digital displaying driver. Because of its outstanding features, it is an excellent tool and most suitable for lab, factory, maintenance and repair users.

2, Open-package Inspection

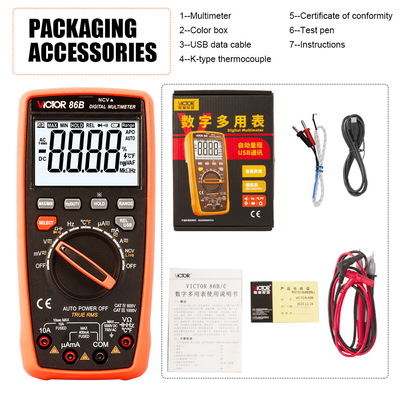

Open the gift box and take out the instrument, carefully check the following accessories. If any accessory was lost or damaged, please contact the manufactory at once.

• Manual 1pc
• Test Leads 1set
• Temperature probe(K type thermocouple)(-20℃~250℃) 1pc
• USB Cable(TYPE-C) 1pc
• AAA battery 4pc
• CD software 1pcs

3. General Feature

1-1. Display mode : LCD display;

1-2. Maximum display: 3999 (3 3/4 bits) automatic polarity display and unit display;

1-3. Simulated bar 30 times/second, 61 segments of simulated bar graph display;

1-4. Measurement method: double integral A/D conversion;

1-5. Sampling rate: about 3 times per second;

1-6. Over range display: display "OL";

1-7. Low voltage display: symbol appears;

1-8. Working environment: 0 ~ 40℃, relative humidity <80%;

1-9. Storage environment :-10 ~ 50℃, relative humidity <80%;

1-10. Power supply: Four 1.5V batteries ("AAA" 7 # batteries);

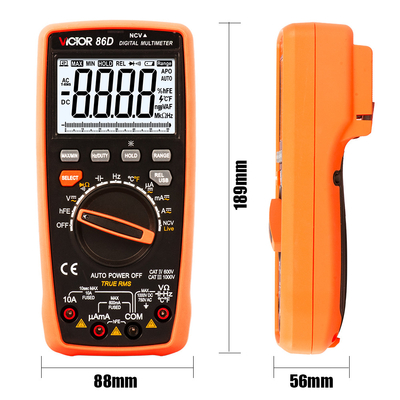

1-11. Dimension(size) :(189×88×56) mm;

1-12. Weight: Approx 423g (including batteries);

Technical data

General Characters
