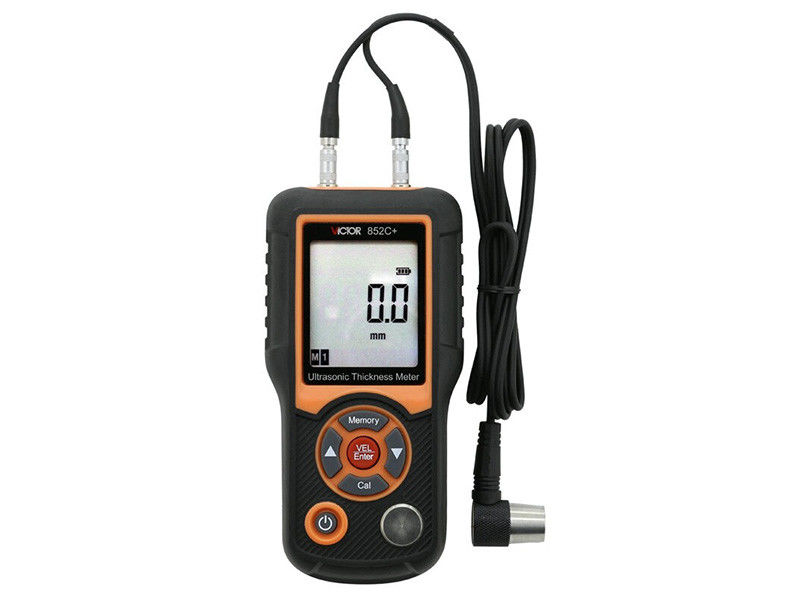

VICTOR 852C+ Ultrasonic Thickness Meter Measure Thickness And Sound Speed Metal Plastic Ceramic Glassultrasonic Wave.
Introduction to the product
This is a type of smart ultrasonic thickness meter and can measurethickness and sound speed of many types of materials such as
metal, plastic, ceramic, glass and other good conductors of ultrasonic wave.
| Model:VICTOR 852C+ |
| Product Name:Ultrasonic Thickness Meter |
| Details: |
| Measuring Range:1.5-200mm |
| Accuracy:0.5%H+0.1 |
| Resolution:0.1m |
|
Sound Velocity Range: 500~9000m/s
Operation Frequency: 5MHz.
|
| Sensor:Ultrasonic 5MHzΦ10 |
| Automatically memorize material code and sound velocity . |
| Low Battery Indication Function |
| Auto Power Off Function |
| Battery:3V(2*1.5V) AAA Battery |
| Product Net Weight:220g |
| Product Size: 147*72*35mm |
| |
|
Product parameters
Display mode: Four-digit LCD display.
Note: This range is only for Q235 steel. Because different materials have different sound velocities, other materials may not be within this range.
Resolution ratio: 0.1mm
Measurement accuracy: ±(1%H+0.1)mm, H is the object thickness.
Lower measurement limit of pipes: Φ20×3mm
Sound speed adjustment scope: 1000～9999m/s
Measuring sound speed with known thickness: Measurement
scope:1000～9999m/s; when thickness of measured objects
is ≤20mm, the precision of sound speed measurement is ±1mm/
H*100%; when the object thickness is ＞20mm, precision of sound
speed measurement is±5%.
Power supply: 3 x 1.5V AA alkaline batteries
Working temperature: 0～40℃
Relative humidity: ﹤90%RH
Storage temperature: -10～50℃
Workpiece temperature: ﹤60℃
Working current:﹤100mA
Product size:152mm×75mm×32mm
Accessories: probe, coupling agents, instruction for use, color box
Frequency of the probe:5MHZ
Range: 1.2～225mm (Q235steel)Frequen
Table of material sound speedThe following is sound speed table of some materials and only for reference.
