Product Details:
|
| Color: | Blue Or Orange And Black | Size: | 180*90*47mm |
|---|---|---|---|
| Product Name: | RTD Source | Model No.: | VICTOR 03+ |
| Packing Details: | 10pcs/Carton; Carton Size: 39.5*38.5*26cm | Accuracy: | 0.05% Accuracy |
| Weight: | Approx. 900 G (including Batteries) | Power Supply: | 2*1.5V AA Alkaline Battery |
| High Light: | 2 Wire RTD Multifunction Process Calibrator,3 Wire RTD Multifunction Process Calibrator,RTD thermocouple calibration equipment |
||

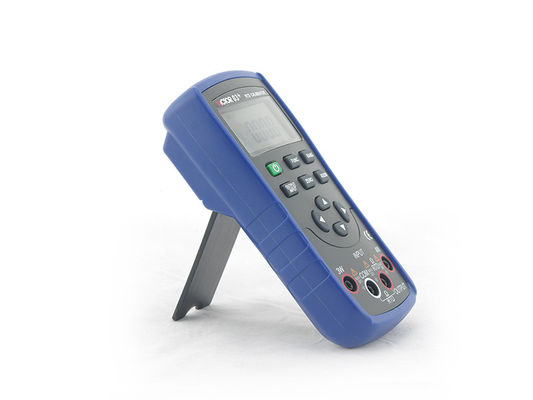

2 Wire RTD Multifunction Process Calibrator Thermocouple Calibration Equipment
RTD Source Resistance and Thermistance Calibrator Multifunction Source Signal Calibrator
Output function and technical index
|
Output function |
Range | Output range | Resolution | Accuracy | Illustration | |
|
Simulate resistance OHM |
400Ω | 0.0～400.0Ω | 0.1Ω | 0.05%+2 |
Incentive current is set as:±0.5～±3mA When the incentive current is set as ±0.1～0.5mA, add an extra 0.1Ω to additional error. The accuracy does not include lead resistance |
|
| 4000Ω | 0～4000Ω | 1Ω | 0.05%+2 |
Incentive current is set as ±0.05～±0.3mA The accuracy does not include lead resistance |
||
|
Thermal resistance RTD |
Cu10 | -10°C～250°C | 0.1°C | 0.05％+6 |
Incentive current is set as ±0.5～±3mA When the incentive current is set as ±0.1～0.5mA, add an extra 0.5°C to additional error. |
Employs Pt(385) standard temperature The accuracy does not include lead resistance |
| Cu50 | -50.0°C～150.0°C | |||||
|
Pt10 385 |
-200.0°C～850.0°C | |||||
|
Pt100 385 |
-200.0°C～850.0°C | |||||
|
Pt200 385 |
-200°C～630°C |
Incentive current is set as± 0.05～±0.3mA
|
||||
|
Pt500 385 |
-200°C～630°C | |||||
|
Pt1000 385 |
-200.0°C～630.0°C | |||||
Output function and technical index
|
Output function |
Range | Output range | Resolution | Accuracy | Illustration |
|
Resistance OHM |
500Ω | 0.0～500.0Ω | 0.1Ω | 0.05%+2 |
Measurement current:about 1mA Open circuit voltage: about 2.5V The accuracy does not include lead resistance |
| 5000Ω | 0～5000Ω | 1Ω | 0.05%+2 |
Measurement current:about 1mA Open circuit voltage: about 2.5V the accuracy does not include lead resistance |
|
|
Thermal resistance RTD |
Cu10 | -10.0°C～250.0°C |
0.1℃
|
0.05%+0.6℃
|
The incentive current is set as:±0.5～±3mA When the incentive current is set as ±0.1～0.5mA, add an extra 0.5°C to additional error. |
| Cu50 | -50.0°C～150.0°C | ||||
|
Pt10 385 |
-200.0°C～850.0°C | ||||
|
Pt100 385 |
-200.0°C～850.0°C | ||||
|
Pt200 385 |
-200°C～630°C |
Incentive current is set as ±0.05～±0.3mA
|
|||
|
Pt500 385 |
-200°C～630°C | ||||
|
Pt1000 385 |
-200.0°C～630.0°C |
General Feature
|
: | two 1.5V alkaline batteries(LR6) |
| l power consumption | : | about 70mA/3V |
|
: | 30V(within terminals or between terminal and earth ground) |
|
: | 0°C～50°C |
|
: | ≤ 80%RH |
|
: | ≤ - 10°C～55°C |
|
: | ≤ 90%RH |
|
: | 0.1×(dedicated accuracy)%/℃(5℃～18℃,28℃～40℃) |
|
: | 180(L)×90(W)×47(D)mm(with protector) |
|
: | about 500g |
|
: | User’s Manual, industrial testing lead H000001 (including alligator clip) |
|
: | complies with IEC1010 (safety standard issued by International Electrician Committee) |
