Product Details:
|
| Color: | Blue And Black | Size: | 180*90*52mm |
|---|---|---|---|
| Product Name: | Process Multimeter | Material: | Plastic, Metal, Silica Gel |
| Packing Details: | 10pcs/Carton; Carton Size: 39.5*38.5*26cm | Accuracy: | 0.5% Accuracy |
| Warranty: | 1 Year | Weight: | Approx. 400 G (including Batteries) |
| High Light: | Victor 77 Process Meter,20mA Victor 77 Process Meter,Victor 77 2 In 1 Digital Multimeter |
||

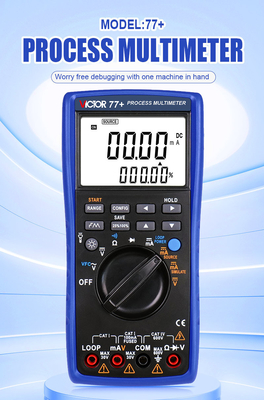

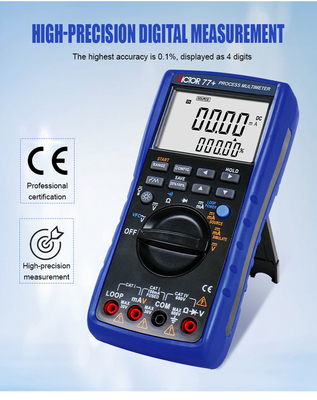

20mA Signal Output 24V Victor 77 Process Meter 2 In 1 Digital Multimeter
VICTOR 77 Digital Multimeter 2 In 1 4-20mA Signal Output Multimeter Process Signal Source 0.5% Accuracy 22mA 24V Source CATIV 600V
Generalization
The Meter is a battery-operated process maintain ace field device which combined both digital-parameter function with process-signal source together.
Functioning as follows:
Opening the Meter Case
Check the product to see whether it is damaged in the shipment or not. Check the materials to see whether they are the same as shown in the packing list. Keep the packing materials for late delivery.
Standard and chosen accessories supplied are listed as follows. Chosen ones are bought at purchaser’s options.

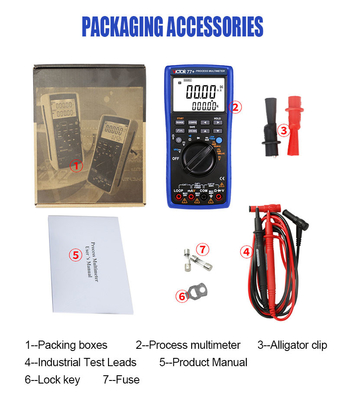

Standard accessories
• 1 testing wire(with alligator clips)
• 1 user’s manual
• 2 1.5V (LR6)Alkaline batteries
• 2 63mA/250V Fast Fuses
Technical Data
| Project | VICTOR 77 | ||
| Measurement | DC voltage | Range | ±51V |
| The highest resolution |
10mV | ||
| Basic accuracy | 0.5% | ||
| AC voltage | Range | `510V | |
| The highest resolution |
100mV | ||
| Basic accuracy | 1.5% | ||
| Resistance | Range | 5kΩ | |
| The highest resolution |
1Ω | ||
| Basic accuracy | 0.5% | ||
| DC current | Range | ±22mA | |
| The highest resolution |
1uA | ||
| Basic accuracy | 0.2% | ||
| Frequency | N/A | ||
| Diode test | √ | ||
| Continuity beeper | √ | ||
| Data hold | √ | ||
| DC current | Range | 22mA | |
| Resolution | 0.001mA | ||
| Basic accuracy | 0.2% | ||
| Simulating transmitter | √ | ||
| 25％,100％Step output | √ | ||
| Display current and % of span | √ | ||
| Loop power | 24V | ||
| Loop detection | The 24V loop power supply and measuring the current | √ | |
| Built in 250 Ω HART loop resistance |
√ | ||
| Power Supply | 2×1.5V AA Alkaline battery | ||
| Auto Power-off | √ | ||
| Backlight | N/A | ||
| Safety | CAT Ⅳ 600V, Pollution degree 2 |
||
| Size | 180×90×52 | ||
| Weight | About 400g | ||
| Accessories | Test line, manual,fuse | ||
| Standard Quantity Per Carton | 10pcs | ||
| Standard Carton Measurement | 395mm*385mm*260mm | ||
| Standard Carton Cross Weight | 8.8Kg | ||
