Product Details:
|
| Size: | 163 Mm X92 Mm X45mm | Product Name: | Analog Multimeter |
|---|---|---|---|
| Model No.: | VICTOR 7244 | Product Packing: | Blister And Cardboard |
| Packing Details: | 50pcs/Carton; Carton Size:46.4*31.5*51 | Brand: | VICTOR |
| Color: | Black And Orange | Fuse: | 0.5A/250V; 10A/250V |
| High Light: | 10A Analog Digital Multimeter,Analog Digital Multimeter 500V,500V lcd display multimeter |
||
VICTOR 7244 High Accuracy 10A Analog Digital Multimeter 500V Lcd Display
Overview

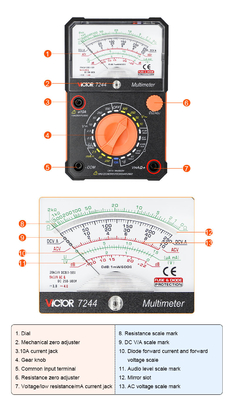

This is an analog multimeter with high accuracy. The safety performance has been improved greatly. It reaches CAT III 600V standard. It has 21 ranges, and can measure DC voltage, AC voltage, DC current, resistance and it has the continuity buzzer function.
(1) Warning Safety Notes
To avoid electric shock, personal injury, instrument damage, please read relevant information of the warning and safety notes carefully before using this meter.
(2) Safety Notes
This analog multimeter meets the EN61010 standard, CAT III 600V super-voltage standard. Please operate the meter according to the operation manual, otherwise the meter will be damaged.
Technical index:
1. General Features:
DC voltage: (DCV)
| Range | Accuracy | Input Impedance |
| 0.1V | ±5% |
20KΩ/DCV |
| 0.5V |
±3% |
|
| 2.5V | ||
| 10V | ||
| 50V | ||
| 250V | 9KΩ/DCV |
AC voltage: (ACV)
| Range | Accuracy | Input Impedance |
| 10V |
±4% |
9KΩ/ACV |
| 50V | ||
| 250V | ||
| 500V |
DC current: (DCA)
| Range | Accuracy | Voltage drop |
| 50uA |
±3% |
≤0.6V |
| 2.5mA | ||
| 25mA | ||
| 250mA | ||
| 10A | ≤0.12V |
Resistance: (Ω)
| Range | Accuracy | Center Value |
| 2k Ω(RX1) |
±3% |
20 |
| 20k Ω(RX10) | ||
| 200k Ω(RX100) | ||
| 2M Ω(RX1k) | ||
| 20M Ω(RX10k) |
Audio level measurement dB
The measurement way is like ACV measurement. When tested circuit contains DC part, it should series connect a blocking capacitor which capacitance is 0.1uF and withstand voltage is more than 500. Turn to range AC 10V, the fourth scale mark shows -10~22dB, and under other ACV range, the actual dBV should follow below ADD, dB form to conversion.
| ACV | ADD | dB |
| 10 | 0 | -10~22 |
| 50 | 14 | 4~36 |
| 250 | 28 | 18~50 |
| 500 | 34 | 24~56 |
