VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave

VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave
VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave

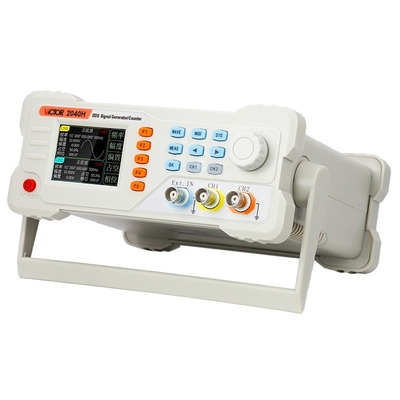

Large Image :  VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave

Product Details:
Place of Origin: CHINA
Brand Name: VICTOR
Certification: CE
Model Number: 2040H
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 1pcs to 50pcs USD95/pc; 50pcs to 100pcs USD90/pc; 100pcs to 500pcs USD85/pc; above 500pcs USD82/pc
Packaging Details: 10pcs/Carton; Carton Size: 55*45.5*27cm;10KG/Carton
Delivery Time: 5 to 30 days
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 1000pcs available
Contact Now

VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave

Description
Color: White Product Name: Signal Generator Counter
Model No.: 2040H Packing Details: 10pcs/Carton; Carton Size: 55*45.5*27cm;10KG/Carton
Display: Large LCD Display Frequency Range: 0-40MHz
High Light:

14bits Signal Function Generator

,

2040H Signal Function Generator

,

14bits sine wave function generator

VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave



Basic function
Frequency characteristic
Model 2015H 2040H 2060H
Sine wave 1uHz~20MHz 1uHz~40MHz 1uHz~60MHz
Square wave 1uHz~ 15MHz
Trigonometric wave 1uHz~ 15MHz
Pulse wave 100uHz~6MHz
Arbitrary wave 1uHz~6MHz
Resolution 1uHz
Accuracy ±20ppm
Stability ±1ppm/3Hours



VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 0VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 1VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 2VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 3VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 4VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 5VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 6VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 7VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 8VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 9VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 10VICTOR 2040H digital desktop usb dds signal generator pwm frequency duty cycle adjustable arbitrary square wave 11

Tag:

14bits Signal Function Generator,

multiple waveforms Signal Function Generator,

victor function generator
