Product Details:
|
| Color: | Orange And Black | Size: | 175mm*34mm *18.5mm |
|---|---|---|---|
| Product Name: | SMD Instrument | Model No.: | VICTOR 6013B |
| Product Packing: | Color Box | Packing Details: | 100pcs/Carton; Carton Size:49*39*37 |
| Display: | LCD Display 2999 | Material: | Plastic, Metal, Silica Gel |
| High Light: | SMD LCR Digital Meters,HandHeld SMD Smart Tweezer,VICTOR 6013B |
||

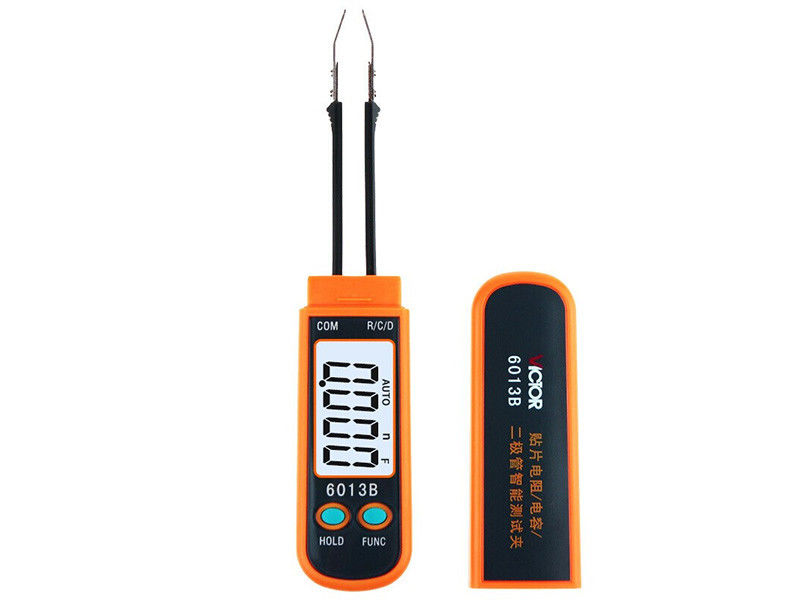

HandHeld LCR Digital Meters LCD Display SMD Smart Tweezer
VICTOR 6013B Hand-Held SMD Instrument Resistor Capacitor And Diode Test Meter 2999 LCD Display Automatic Identification
1. Introduction
This is a deft hand-hold SMD instrument, which can automatically identify resistor, capacitor anddiode and measure accurately.
Design of the instrument is consistent with IEC1010-ICATll safety standards, and conformed tosafety rules of the European Community.CE regulation 89/336 (EMC electromagnetic compatibility)Appearance design of the instrument is nice-looking, provided with solid structure,convenient useand accurate measurement.Users are expected to read the instruction manual carefully before use.2.Safety rules
Before use,check the shell is damaged or not.Check the testing needle is complete or not.
This instrument can not be used as nipper to avoid damaging the testing needle.Do not apply any voltage to the testing needle.
Do not use in the environment containing corrosive gas and etc.Notes: do not use this instrument on electrified circuit.
2. Technical specIfications
General characteristicsMaximum display: 2999
Automatic resistor/capacitor/diode scanning
FUNC button is used to select the testing mode manuallyData holding function
Overload indication OL
Battery under-voltage indication
Powersupply: 3V lithium battery (CR2032),1 piece
Automatic turnoff: turn off automatically 10 minutes after turning on
Working temperature and humidity: 0-40℃(32-104F)&<80%RH
Storage temperature and humidity: 0-50℃(32-122°F)&<85%RH
Dimensions(L×W×H)&
Weight:175×34×18.5mm, approx.68g4-2
Guaranteed temperature accuracy:23± 5℃,
Relative humidity:<70%, and guarantee periodfor accuracy: 1 year
Technical Data
| Range | Accuracy | Resolution |
| 300Ω/3KΩ/30KΩ/300KΩ | ±(1.0%+5d) | 0.1Ω |
| 3MΩ/30MΩ | ±(2.0%+5d) | |
| 3nF/30nF/300nF/3μF/30μF/300μF | ±(3.0%+5d) | 0.1nF |
| 3mF/30mF | ±(5.0%+5d) |
| General Features | VICTOR 6013B |
| Low Battery Indication | √ |
| Auto Power Off | √ |
| Data Hold | √ |
| Max. Display | 2999 |
| Sampling Rate | 3 times/s |
| Operation Temperature/Humidity | 0℃~40℃; Humidity<80% |
| Over Range Indication | LCD “0L” |
| Product Size | 175×34×18.5mm |
| Product Weight | 68.5g |
| Power | 3V CR2032 |
