Product Details:
|
| Power Source: | 9V Battery | Working Temperature: | -10～50℃ |
|---|---|---|---|
| Material: | Plastic, Metal, Silica Gel | Sampling Rate: | About 3 Times / Sec |
| AC DC Current: | 60A/600A/1000A | AC Voltage: | 1000V |
| Display: | 5999 Counts | DC Voltage Range: | 1500V |
| Range Selection: | Automatic | Operation Way: | Manual Range |
| Display Type: | Digital | Measurement Type: | AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode |
| Frequency: | 50Hz | Storage Temperature: | -10～50℃ |
| Automatic Power Off: | 15 Minutes |
This instrument is a 6000 counts hand-held automatic range True RMS clamp digital meter. The circuit design of the meter takes the large-scale integrated circuit ∑/△ analog-to-digital converter (ADC) as the core, and it has the full-range overload protection circuit. It can be used to measure AC and DC voltage, low-pass filter VFC voltage, low impedance Low Z voltage, AC and DC current, resistance, diode, continuity test , capacitance, frequency, duty cycle, temperature and other parameters, and has data retention, relative value measurement, surge current measurement function, torch function, NCV function, live wire judgment, under-voltage display and automatic shutdown function.
GENERALSPECIFICATION
1. Max. Indication: 5999, 3 times / sec.
2. Polarity indication: The positive and negative polarities automatically display.
3. Over range indication: LCD displays OL or -OL
4. Low battery indication: symbol displays
5. Operation temperature: 0～40℃, relative humidity <75%
6. Storage environment:-10℃~50℃, relative humidity <85%RH;
7. Power:Four1.5V AAA battery LR03

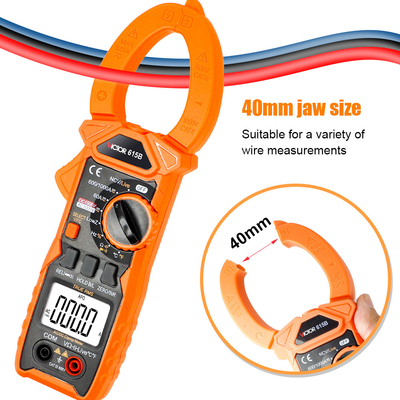

8. The Max. opening size of the clamp head: Diameter 40mm
9. Max. measuring current wire: Diameter 39mm
10. Size: 230×75×40 mm
11. Weight: approx.313g (including batteries)
