Product Details:
|
| Color: | Blue And Black | Display: | Number: 5-digit Display |
|---|---|---|---|
| Product Name: | Process Multimeter | Work Environment: | 0~40°c, Relative Humidity ≤85% |
| Battery Type: | Three 1.5V (LR6) Alkaline Batteries | Battery Low: | Lt Is Indicated With A Battery Mark |
| Weight: | About 500g | Storage Environment: | -20°C-60 °c Relative Humidity Below 90% |

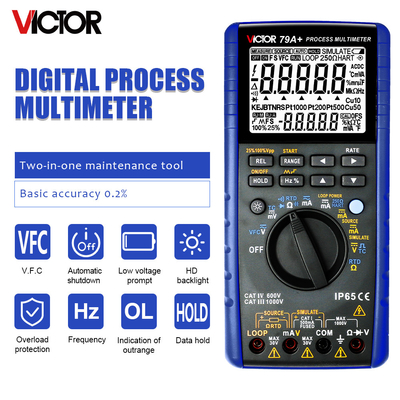

VICTOR 79A+ Digital Multimeter dual color plastic mold shell design and compliance with IP65 dust and waterproof grade
Basic characteristics of the product
1. An industrial level on-site process maintenance tool combining a digital multi-meter with a process signal source.
2. The product is used in harsh environments for the dual color plastic mold shell design and compliance with IP65 dust and
waterproof grade.
3. The product meets the safety standards of 600V CAT.IV and 1000V CAT.III.
4. Basic characteristics of input measurement * Measurement functions: AC voltage, DC voltage, ohms, capacitance, DC current, AC
current, Continuity, diode, frequency,thermocouple, and thermal resistance.
* The measurement display reading is 55000 reading with a basic accuracy of 0.05%.
* Measurement rate: fast 20 times/second, slow 5 times/second.
* True AC RMS measurement, measurement bandwidth: 20Hz~1000Hz.
* Manual or automatic range can be selected, and the measurement value display remains unchanged.
* Relative value measurement (REL_ %)
* Low pass filtering function (VFC) can accurately measure the voltage of frequency converters or other noise devices.
5. Basic characteristics of analog output
* The basic output accuracy is 0.05%, and the output display is 5 bits.
* Output function: DC voltage, DC current, ohms, frequency, thermocouple, thermal resistance, SIMULATE function analog
transmitter
* When DC current outputs, both mA and % values can be displayed simultaneously. 25% and 100% manual stepping, automatic
stepping, and automatic ramp current output functions
* 24V loop power supply is provided internally.
6. Loop detection function
* Simultaneously supply 24V circuit power and measure current.
* Built-in optional 250Ω HART loop resistor facilitates the use of HART communication devices without the need to carry load
resistors separately.
7. Built in temperature sensor, automatic cold-end compensation, and temperature display of ℃ or ℉.
8. Manually set temperature cold-end compensation.

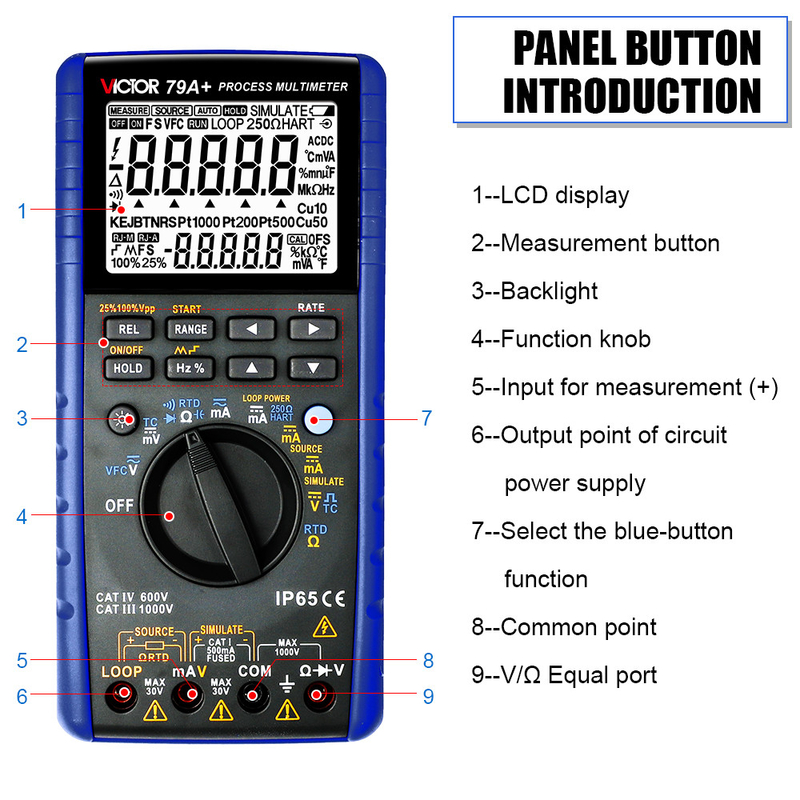

9. Large screen LCD’s dual display with white LED backlight.
10. Panel calibration technology is adopted for the instrument, which is connected to the standard instrument. The instrument
panel calibration operation is carried out according to regulations. Moreover, corresponding calibration data is stored to
complete the periodic calibration work of the instrument and ensure that it reaches the required accuracy and performance.

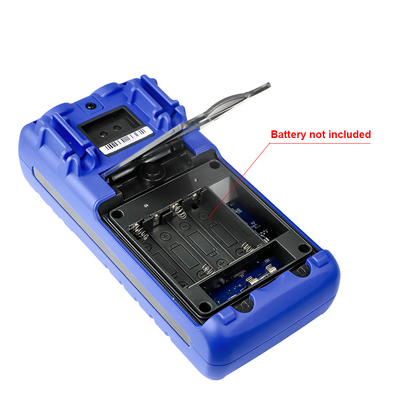

11. Easy replacement of batteries and fuses is allowed for the battery compartment door.
12. The instrument can be powered by four AA alkaline batteries or nickel hydrogen batteries in the battery compartment, or
through a power adapter.
13. Other functions: automatic power off, automatic backlight off, low battery detection, temperature unit setting, etc.
| Function | Range | Output setting scope | Resolution | Precision | Remark |
|
DC voltage DCV |
100mV | -10.00～110.00mV | 10μV | 0.2%+4 | Maximum output current 0.5mA |
| 1000mV | -100.0～1100.0mV | 100μV | 0.2%+4 | Maximum output current 2mA | |
| 10V | -1.000～11.000V | 1mV | 0.2%+4 | Maximum output current 5mA | |
|
DC current DCI |
30mA | 0.000～33.000mA | 0.001mA | 0.2%+4 |
20mA, maximum load1KΩ 30mA, maximum load600Ω |
|
Simulated transmitter SIMULATE |
-30mA | 0.000～-33.000mA | 0.001mA | ||
|
Loop power LOOP |
24V | ±10% | Maximum output current 35mA | ||
| OHM | 400Ω | 0.0Ω～400.0Ω | 0.1Ω | 0.2%+4 |
Excitation current: ±0.5～3mA When excitation current is ±0.1～0.5mA, an additional error of 0.1Ω should be taken into account. The precision doesn’t include lead resistance. |
|
Thermocouple TC |
R | 0°C～1767°C | 1°C |
0.2%+3°C(≤100℃) 0.2%+2°C(＞100℃) |
With the thermometric scale of ITS-90; The precision doesn’t include errors in cold-end compensation |
| S | 0°C～1767°C | ||||
| B | 600°C～1820°C | ||||
| K | -200.0°C～1372.0°C | 0.1°C |
0.2%+2°C(≤-100℃) 0.2%+1°C(＞-100℃) |
||
| E | -200.0°C～1000.0°C | ||||
| J | -200.0°C～1200.0°C | ||||
| T | -250.0°C～400.0°C | ||||
| N | -200.0°C～1300.0°C | ||||
|
Thermal resistance RTD |
PT100 | -0200.0～0850.0 | 0.1°C | 0.2%+0.6°C |
With the thermometric scale of Pt100-385; With excitation current of ±1mA The precision doesn’t include lead resistance. |
| Cu50 | -050.0～150.0 | ||||
|
Frequency FREQ |
100Hz | 1.0Hz～110.0Hz | 0.1Hz | 0.2%+2 |
Rectangular wave, duty cycle of 50% 1～11Vp-p |
| 1KHz | 0.100KHz～1.100KHz | 1Hz | 0.2%+2 | ||
| 10KHz | 1.0KHz～11.0KHz | 0.1KHz | 0.2%+2 | ||
| 1.Load characteristics: capacitive loads ≥0.01uF. | |||||
