Product Details:
|

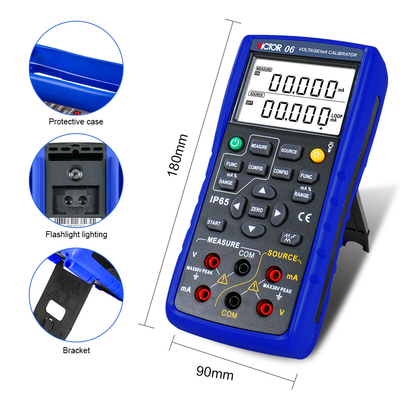

| Color: | Blue Or Orange And Black | Size: | 180*90*47mm |
|---|---|---|---|
| Product Name: | Loop Calibrator | Model No.: | VICTOR 06 |

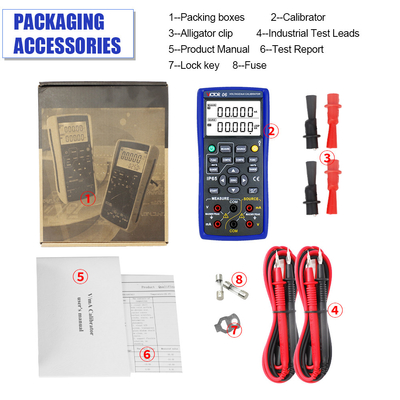

| Packing Details: | 10pcs/Carton; Carton Size: 39.5*38.5*26cm | Accuracy: | 0.05% Accuracy |
| Weight: | Approx. 900 G (including Batteries) | Power Supply: | 2*1.5V AA Alkaline Battery |

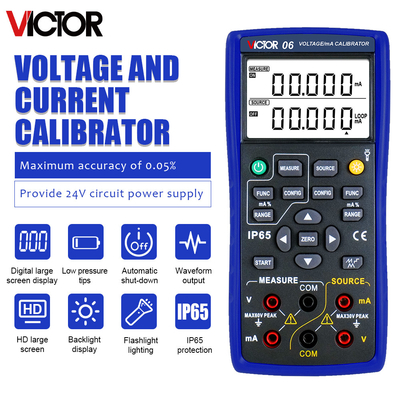

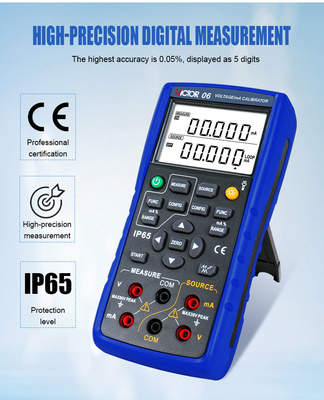

VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current
Input measurement function
[Applicable within one year after calibration, 23°C±5°C, 20～70%RH, Accuracy=± (%Setting Value+Digit)]
| Measurement function | Range | Measuring range | Resolution | Accuracy | Remarks |
|
DC Voltage DCV |
100mV | -110.000mV~110.000mV | 0.001mV | 0.05%+0.03mV | Input resistance: Approximately 1MΩ |
| 1V | -1.1000V~1.1000V | 0.0001V | 0.05%+0.3mV | ||
| 35V | -35.000V～35.000V | 0.001V | 0.02%+2mV | ||
|
DC current DCI |
30mA | -35.000mA~35.000mA | 0.001mA | 0.02%+4uA |
Shunt resistance: Approximately 10Ω Input resistance: Approximately 20Ω |
| Loop power supply | 24 V | 10% |
Analog output function
[Applicable within one year after calibration, 23°C±5°C, 20～70%RH, Accuracy=±(%Setting Value+Digit)]
| Output function | Range | Output range | Resolution | Accuracy | Remarks |
|
DC Voltage DCV |
10V | -1.000V～11.000V | 0.001V | 0.05%+2mV | Maximum output current: 5mA |
|
DC current DCI |
20mA | 0.000mA~22.000mA | 0.001mA | 0.05%+4uA |
Max load of 1000Ω at 20 mA When used as an analog transmitter, the external loop power supply is 5～28V. |
| Loop power supply | 24V | ±10% | Maximum output current 25mA |
