Product Details:
|

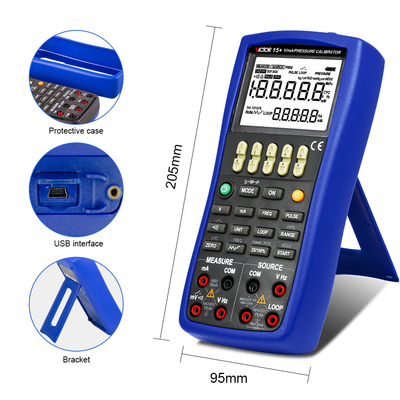

| Color: | Blue And Black | Size: | 205 × 95 × 42 Mm |
|---|---|---|---|
| Product Name: | Portable Temperature Calibrators | Model No.: | VICTOR15+ |

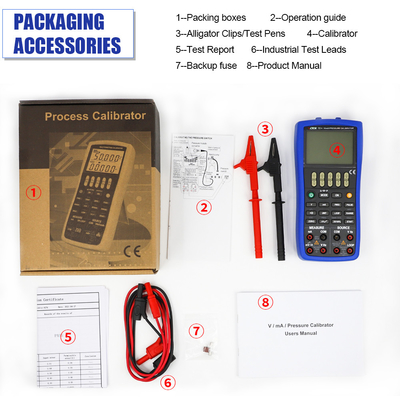

| Packing Details: | 10pcs/Carton; Carton Size: 39.5*38.5*26cm | Accuracy: | 0.02%+0.01% Accuracy |

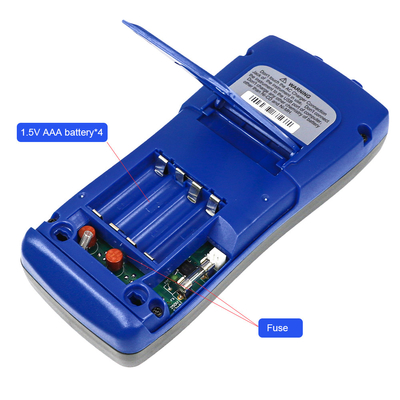

| Weight: | Approx. 1100 G (including Batteries) | Power Supply: | 4*1.5V AAA Alkaline Battery |
VICTOR 15+ V/mA Calibrator current calibrator handheld calibrator
V/mA/Pressure Calibrator
The voltage/current/pressure calibrator (the calibrator in the following) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters.
Features:
Measure: DC-voltage, DC-current, frequency and continuity
Source: DC-voltage, DC-current, simulation transmitter, frequency and pulse
Pressure: measuring pressure, Calibrating pressure-voltage transmitter, Calibrating 2wire pressure transmitter, Calibrating pressure switch;
Others features:
Specifications
General Specifications for measure
These specifications assume:
Accuracy is expressed as ± (percentage of reading + percentage of range).
| F Function | Reference | Range | Resolution | Accuracy | Remark |
| DCV | 200mV | -20.00mV～ | 10μV | 0.02+0.02 | Input Resistance: 100MΩ |
| 5V | -0.5000V～ | 0.1mV | 0.02+0.01 | Input Resistance: 1MΩ | |
| 50V | -5.000V～ | 1mV | 0.03+0.01 | ||
| DCmA | 50mA | -4.000mA～ | 1μA | 0.02+0.01 | Input Resistance: 5Ω |
| FREQ | 500Hz | 3Hz～500.00Hz | 0.01Hz | ±2digit | Input Impedance:100 kΩ at least; |
| 5KHz | 3Hz～ | 0.1Hz | |||
| 50KHz | 3Hz～50.000KHz | 1Hz | |||
| *CONT. | ≤250Ω sound | OPEN/CLOSE | Open voltage: 2.5V |
General Specifications for Source
| Function | Reference | Range | Resolution | Accuracy | Remark |
DCV | 1000mV | -100.000mV~1100.000mV | 10μV | 0.02+0.01 | Maximum output current: 2mA |
| 10V | -1.0000V~11.0000V | 0.1mV | 0.02+0.01 | Maximum output current: 5mA | |
DCA | 20mA | 0.000mA~22.000mA | 1μA | 0.02+0.02 | External supply for simulate mA: 5V–28V |
| FREQ | 100Hz | 1.00Hz~110.00Hz | 0.01Hz | ±2 count | Output voltage: 1~11 Vp-p (zero base waveform); |
| 1KHz | 0.100kHz~1.100KHz | 1Hz | |||
| 10KHz | 1.0KHz~11.0KHz | 0.1KHz | |||
| PULSE | 100Hz | 1~100000cycles | 1cyc | _______ | Output voltage: 1~11 Vp-p (zero base waveform); |
| 1KHz | |||||
| 10KHz | |||||
| LOOP | 24V | ±10% | Maximum current: 25 mA |
Other feature:
l Temperature Coefficient: 0.1 times the applicable accuracy specification per degree ℃for 5℃ to 18℃ and 28℃ to 50℃.
l Maximum voltage between any output terminal and earth: 30Vpk
Maximum output current: Approximately 25mA.
General Specifications for Pressure
| Function | Reference | Range | Resolution | Accuracy | Remark |
| PRESSURE | Determined by pressure module | _____ | Determined by pressure module | Determined by pressure module | For more detail, refer the pressure module about APM. |
