|Black And Orange
|DC 6V Alkaline Dry Batteries(1.5V AAA×4)
|High Low Voltage Clamp Meter
VICTOR Low Voltage Clamp Meter,
CT Low Voltage Clamp Meter,
VICTOR high voltage clamp meter
High Low Voltage Clamp Meter CT Integrated Mask Digital Technology

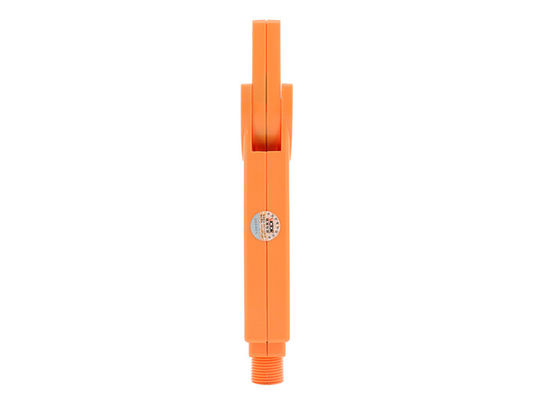

VICTOR 9000/9000B High Low Voltage Clamp Meter CT Technology And Integrated Mask Digital Technology Wireless Transmission Of Test Data
VICTOR9000 Series H/L Voltage Clamp Meter has broken through the traditional structure, which is specially well-designed for measuring high voltage current, adopting the latest CT technology and integrated mask digital technology, formed by composition of a special use clamp meter with a high-voltage insulation rod, as to VICTOR9000B type --- wireless transmission of test data, it is equipped with wireless receivers, which can be received inside the 30-meter line measured data. If not using an insulation rod, it can be also used as a high precision low-voltage clamp meter, or an alternating current meter, which can accurately measure0.1mA of current or leakage current.
VICTOR9000 Series H/L Voltage Clamp Meter has an innovative integrated design between transducer clamp and transducer domain, ensuring the high-precision, high-reliability, and high-stability on constant test perennially.
VICTOR9000 Series H/L Voltage Clamp Meter is connected with insulation rod, which can be used for measuring high voltage current that is below 23KV, on-line current measurement, also having peak maintenance, data preservation, data storage, wireless transmission and other functions, and its special clamp meter can make it easier for clamping or evacuating the tested wire through pressing or pulling back the insulation rod, time-saving and fast, widely used in transformer substation, power plant, industrial and mining enterprises as well as the inspection station and electrician maintenance departments for electrical current detection and field electrical operations. It can also replace the H/L voltage transforming ratio tester, that is, to detect the high and low current for primary circuit and secondary circuit separately, and then calculate to conclude the change of high and low pressure. The insulation rod is light and convenient, with the advantages of anti-moisture, high temperature resistance, anti-impact, bending resistance, high insulation, flexibility and other characteristics.
|Range of measurement
|High voltage AC current measurement, low voltage AC current, leakage current measurement, on-line AC current supervision.
|DC6V Alkaline Dry Battery (1.5V AAA X 4)
|Clamp CT, Integral Method
|B Model: Wireless Transmission, the maximum distance for direct transmission is about 30m.
|4 digital LCD display, backlight function, suitable for dark place.
|About 2 times/second
|Range of measurement
|0.1mA～1000A(50/60Hz Auto Identification)
|0.1mA~1000A Automatic Shift
Test Accuracy(23℃±5℃,Below 80%RH)
|99 Groups, during storage, the symbol “MEM”gives indication, “FULL” mark will flash to indicate the memory has been full.
|Test for the circuit below 23KV (operated with insulation rod)
|Automatically maintain the height of the test value, usually in the test mode press PEAK key, PEAK lights, that is, to keep open the PEAK function, then press PEAK key to cancel this function
|Under general test mode, press HOLD button to preserve data, “HOLD”symbol display. then press HOLD Key to cancel this function
|“MR”symbol indicates, it can read the stored data by turning upwards and downwards.
|Exceed measurement range overflow function: “OL A” symbol display
|* No signal Indication
|When the receiver has not received transmit signal, it will display “no- -”symbol
|Auto Shut Down
|About 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption.
|When the battery voltage is below 4.8V, the symbol of battery voltage“ ”will show to remind to replace battery.
|Tester: About 335g (Including battery), total quality of meter: about 2.5Kg (including insulation rod and battery.)
|Work Temperature and Humidity
|-10℃～40℃； Below 80%Rh
|Storage Temperature and Humidity
|-10℃～60℃； Below 70%Rh
|Insulated Rod Dimension
|AC 40KV/rms (Between insulation rod and clamp core)
|Anti-Dripping Type II
