Product Details:
|
| COLOR: | BLACK AND ORANGE | SIZE: | 175(L) ×110(W) ×70(D) Mm |
|---|---|---|---|
| POWER: | 1.5V AA * 6PCS | WEIGHT: | 0.7KG |
| Max. Display: | 1999 | Measuring Voltage: | 1000V/2500V |
| High Light: | vc60b+ Digital Insulation Tester,megohmmeter 1000v,victor vc60b+ |
||
Victor Vc60b+ Digital Insulation Tester Megohmmeter With DCV ACV Detection

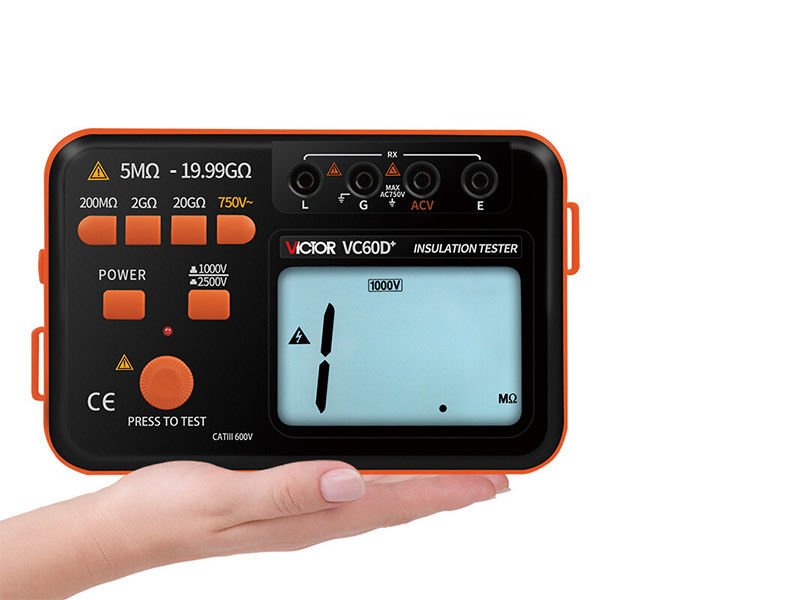

VC60D+ Insulation Tester 2500V High Voltage Digital Insulation Resistance Tester Digital Megohmmete With DCV And ACV Detection
Introduction
The digital insulation tester uses the DC-excited transducer to convert DC 12V to DC high voltage 1000V/2500V. The main amplifier tests the insulation voltage by the current ratio measurement of traditional megger. The input terminal uses micro-current to test anti-interference circuit and the output terminal adopts the division function of double integrating digital voltmeter to process the data conversion. It is characteristic of strong loading capacity, high anti-interference of electric field, portable operation, wide range, backlight display and so on. It could also be used to test commercial electric power. With its stable performance and high grade appearance, it is widely used to test the insulated voltage resistance for electrical equipment, instrumentation, cables and so on.
Technical Data
| Basic Function | Range | Basic accuracy |
| VC60D+ | ||
| Measuring voltage | 1000V/2500V | ±10% |
| Median resistance | <4mA | √ |
|
Median voltage 1000V |
200MΩ:6-199.9MΩ | ±(5%±5bit) |
| 2GΩ:0.06-1.999GΩ | ±(5%±5bit) | |
| 20GΩ:0.6-19.99GΩ | ±(5%±5bit) | |
|
Voltage test 2500V |
200MΩ:5-199.9MΩ | ±(5%±5bit) |
| 2GΩ:0.05-1.999GΩ | ±(5%±5bit) | |
| 20GΩ:0.5-19.99GΩ | ±(5%±5bit) | |
| Measuring Voltage | AC750V | ±(1% +6bit) |
| Jack position |
Insulation resistance: L,E AC750V : ACV G AC750V: ACV G |
|
| Overload Indication | √ | |
| Auto power off | √ | |
| Max. display | 1999 | |
| Product Dimension | 175×110×70mm | |
| Product Net Weight | Approx. 720g(include battery) | |
| Power | 5# battery LR6(1.5)×8 | |
| Using Temperature | 0℃~40℃ | |
| Relative Humidity |
30%RH~85%RH
|
|
| Special Function |
VC60D＋
|
|
| Low Battery Indication | √ | |
| Alarm Function | Red indicator light is illuminated | |
| Unit Symbol Display | √ | |
| Over Range Display | “1” | |
| Basic function | Range | Basic accuracy |
| Output Voltage | 1000V/2500V | ±20% |
| Short-circuit current | <4mA | √ |
| Insulated Resistance 1000V | 200MΩ:6.0-199.9MΩ | ±(5%±5 digit) |
| 2GΩ:0.06-1.999GΩ | ±(5%±5 digit) | |
| 20GΩ:0.6-19.99GΩ | ±(5%±5 digit) | |
| Insulated Resistance 2500V | 200MΩ:5-199.9MΩ | ±(5%±5 digit) |
| 2GΩ:0.05-1.999GΩ | ±(5%±5 digit) | |
| 20GΩ:0.5-19.99GΩ | ±(5%±5 digit) | |
| Voltage Measurement | AC750V | ±(1% +6 digit) |
| Jack Position | Insulated Resistance: L,E AC750V: ACV G | |
