Product Details:
|
| COLOR: | BLACK AND ORANGE | SIZE: | 178(L) ×110(W) ×59(D) Mm |
|---|---|---|---|
| Battery Type: | Alkaline Batteries 1.5V (LR6)8 | WEIGHT: | About 600g |
| Max. Display: | 1999 | Automatic Shut-down: | About 15 Minutes |
| High Light: | vc60b+ Digital Insulation Tester,megohmmeter 1000v,victor vc60b+ |
||

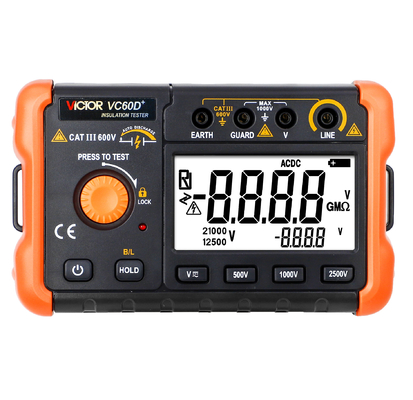

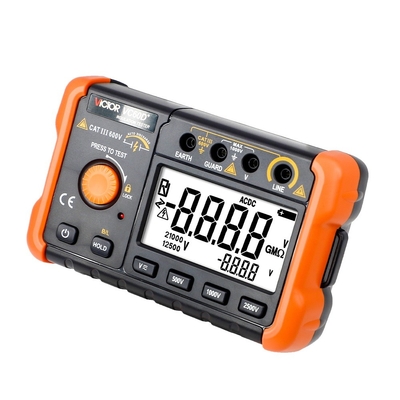

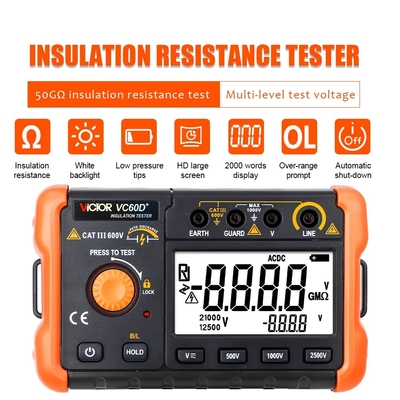

60D+ 500V/1000V/2500V Digits intelligent micro-insulation tester
This- Instrument- is-an-intelligent- micro-insulation tester, which can measure parameters such as insulation resistance and voltage, with features of stable performance and user-friendly operation.
| Overload Protection |
Insulation resistance function: AC1200V/10 seconds; voltage function: AC750V/DC1000V/10 seconds |
| Legal Conformity | IEC61010-1(CAT Ⅲ 600V,POLUTION degreeⅡ) IEC61557-1,2(electronic safety requirements for low voltage distribution system below AC 750V and DC 1000V |
| Electromagnetic Compatibility | conforms to IEC61326-1,Group 1,Class B |
| Surge Protection | 6kV (as per IEC61010.1-2001) |
| Display Screen | digit: displays in 2000 digits; white backlight |
| Operation Temperature and Moisture Range | 0～40 ºC, relative moisture≤85%(no condensation) |
| Storage Temperature and Moisture Range | -20ºC～60ºC,relative moisture≤90%( no condensation) |
| Accuracy Required Temperature and Moisture Range | 23±5ºC,relative moisture≤75%( no condensation) |
| Ambient Condition for Operation | Indoor, outdoor operation(no waterproof),at an altitude of 0～2,000 meter |
| Indicator for Over-range | Voltage: OL Insulation resistance: > 1999G / >1.99G / >4.99G |
| Battery Type | 8* 1.5V Alkaline (LR6) batteries |
| Low Battery | displays battery symbol |
| Automatic Power-off | The default value is 15 minutes if no operation |
| Closed – case Calibration | no internal adjustments needed |

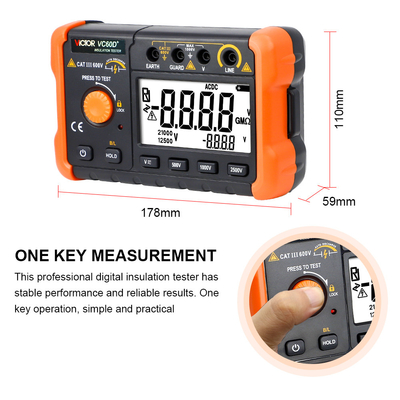

| Size | 178(L)×110(W)×59(D)mm |
| Weight | about 630g |
| Calibration Period | One year |
