Product Details:
|
| Color: | Black And Orange | Size: | 255(L)×65(W)×25(H)mm |
|---|---|---|---|
| Product Name: | Digital Lux Meter | Model No.: | 2GA |
| Packing Details: | 60pcs/Carton; Carton Size: 480*380*375mm;21.5KG/Carton | Material: | Plastic, Metal, Silica Gel |
| High Light: | VICTOR 2GA Digital Wood Moisture Meter,LCD Digital Wood Moisture Meter,CE handheld humidity meter |
||
VICTOR 2GA China Supplier Best seller Moisture Meter Cheap price Wood Moisture Meter Moisture Analyzer
It is an instrument for measuring the moisture content of materials and is often used to measure the moisture content of wood or building materials.This measurement can provide a basis for the need for continued drying. The moisture content of the material is given in percent by weight.
Technical Characteristics .
Sensor:
Resistance(conductivity measurement)moisture humidity sensor, temperature sensor
Parameter:% humidity(wood or building material)
℃/℉ temperature
Measuring range: See section "Instrument operation"
resolution: 0.1%,1℃
Max.error(at 25℃,±1digit)
moisture test %:±2%; temperature test:±2℃
Measurement rate: 0.5 seconds
Protection class: IP 20
Ambient temperature: (- 10 - 50)℃ 20-50%RH
Storage temperature: (- 40 -70)℃ 20-50%RH
Power supply: 1 section 6F22 9V battery
Weight:About150g (including battery and protective cover)
EC Directive: 2004/108/EEC

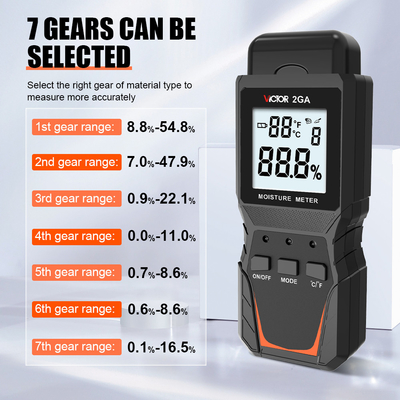

| NO. | Adjustable paper type | Characteristic curve |
|
|
beech, spruce, larch, birch, cherry, walnut | 8.8-54.8% |
|
|
Oak, pine, maple, gray trees, Douglas fir, Eucalyptus urophylla | 7.0-47.9% |
|
|
Cement mortar layer, Concrete | 0.9-22.1% |
|
|
Anhydrous gypsum mortar layer | 0.0-11.0% |
|
|
Cement mortar | 0.7-8.6% |
|
|
Lime mortar, gypsum | 0.6-8.6% |
|
|
Brick | 0.1-16.5% |
| Material | Characteristic curve |
Material moisture (weight percent) |
| Anhydrous gypsum mortar layer | 4 | 0.5% |
| Concrete | 3 | <2.2% |
| Gypsum | 6 | 0.8% |
| Lime mortar | 6 | <20.% |
| No-hole sintered brick | 7 | 1.0% |
| Cement mortar layer | 3 | <30.% |
| Cement mortar | 5 | <3.0% |
| Applicable type | Characteristic curve |
Wood moisture (weight percent) |
| closed building with heating | 1or2 | (9土3)% |
| closed building, no heating | 1or2 | (12土3)% |
| Roof open building | 1or2 | (15土3)% |
| full open building | 1or2 |
(18土3)%
|
