Product Details:
|
| Product Name: | Insulation Resistance Tester | Color: | Orange And Black |
|---|---|---|---|
| Weight: | Approx : 600g | Max. Display: | 1999 |
| Accuracy: | ±(4.0%+2) | Power Supply: | 5# Battery LR6 (1.5V) |
| Model: | VC 60B+ | Packing: | 28pcs/Carton |
Products Description

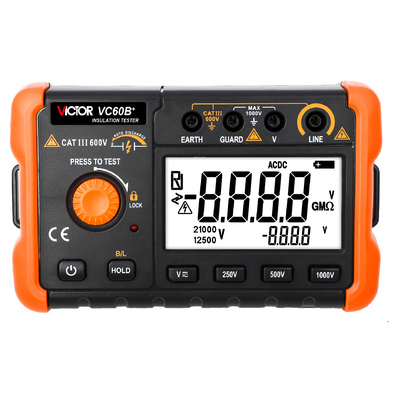

VC60B+ 250V/500V/1000V Digital Insulation Resistance Tester Digital Megohmmeter
1. GENERAL
This instrument adopts the DC Voltage convertor of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 250V/500V/1000V DC Voltage. It uses digital bridge to make the insulation resistance measurement had the features of user-friendly, high extent range, backlight display, data hold and auto power off. The whole instrument is stylish and superior grade in appearance and high stable in performance, it can be operated by both hands through using a shoulder strap. It
is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
2, General Property
(1) Display:84.8×59.8mm LCD display, max.“1999”.
(2) Over range indicator:display“1”.
(3) Power:5# battery LR6 (1.5V) ×6 (or external AC adaptor), no battery indicator.Auto power off (approx. 15miutes after turning on
(4) Power consumption:consumption is less than 300mw at unload measurement.
(5) Operation environment:Temperature 0°C—40°C. Relative humidity 30%RH—85RH.

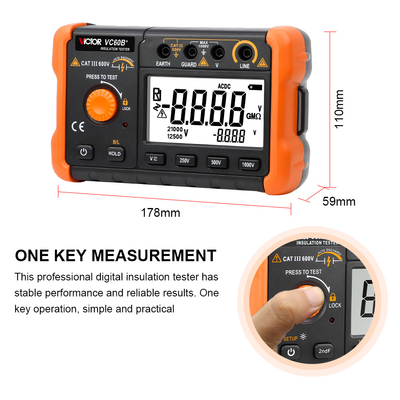

(6) Dimension:178(L) ×110(W) ×59(D) mm.
(7) Weight:600 g (including batteries).

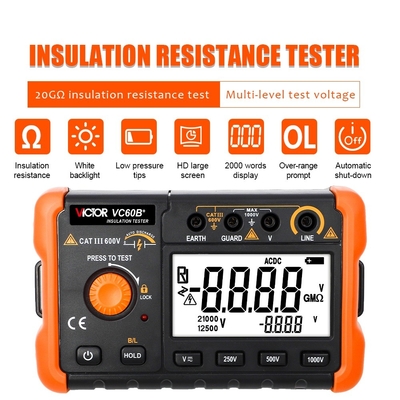

3. Main Features:
Large LCD 2000 counts display, easy to read.
Test voltage for your choice: 250V / 500V / 1000V.
Reliable insulation resistance tester with stable performance.
Locking function of test button, wide measurement range, convenient to use.
Perfect overload protection, widely used for insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
Powered by 6 batteries(not included), with low battery indication and 750V AC voltage test.
Specification
| Range | 250V/0.4MΩ~999MΩ |
| 500V/ 0.6MΩ~1999MΩ | |
| 250V/0.4MΩ~999MΩ | |
| Display Screen | digit: displays in 2000 digits; white backlight |
| Operation Temperature and Moisture Range | 0～40 ºC, relative moisture≤85%(no condensation) |
| Storage Temperature and Moisture Range | -20ºC～60ºC,relative moisture≤90%( no condensation) |
| Accuracy Required Temperature and Moisture Range | 23±5ºC,relative moisture≤75%( no condensation) |
| Ambient Condition for Operation | Indoor, outdoor operation(no waterproof),at an altitude of 0～2,000 meter |
| Indicator for Over-range | Voltage: OL Insulation resistance: > 1999G / >1.99G / >4.99G |
| Battery Type | 8* 1.5V Alkaline (LR6) batteries |
| Low Battery | displays battery symbol |
