Product Details:
|
| Color: | Orange And Black | Size: | 330*280*260mm |
|---|---|---|---|
| Produce Name: | Digital Insulation Tester | Model No.: | 9620B |
| Product Packing: | Color Box | Packing Details: | 1pcs.carton; Carton Size:35*30*28cm; 7kg/carton |
| Test Range: | 50V, 250V, 500V, 1KV, 2.5KV, 5KV 10KV,15KV | Resistance Range: | 0.005MΩ~30.0TΩ |

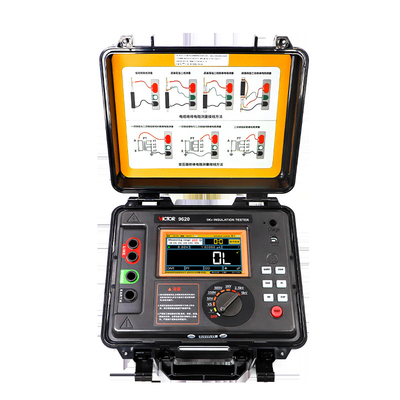

VICTOR 9620C 15V 30TΩ High Voltage Insulation Resistance Tester Touch Color Screen Resistance electronic testers
9620 Series High Voltage Insulation Resistance Tester is a high performance high voltage insulation resistance tester of well research and development by our company. The tester has complete various insulation resistance index test functions, self-set test voltage function, and good anti-interference ability
This series high voltage insulation resistance tester product feature:
* Insulation resistance range up to 0.005MΩ~30.0TΩ
* Output rated voltage max reach 6 gears 50V, 250V, 500V, 1KV, 2.5KV, 5KV,10KV,15KV
* Max short circuit current 5mA
* Insulation resistance test (IR), polarization index test(PI), dielectric absorption ratio test (DAR).
* Ramp test mode (RAMP), filtered resistance test mode (FR).
* Voltage monitor function, automatically monitoring the live voltage of the measured object
* Test timer function, automatically record the test time.
* Automatic discharge function, the charge of the tested object is released automatically after the test.
* Automatic shutdown function.
* Large size touch colorful screen.
* Double-shell structure, sturdy and durable, protection rating of IP65
* Large capacity rechargeable lithium battery pack.
* Storage function, can automatically store 1000 groups of real-time test data with test date, time and timing.
* Upload function, equipped with USB interface, the recorded data can be uploaded to the computer via USB communication cable for
data statistical analysis.
| Product Model | Output Voltage | Insulation Resistance Range | Short Circuit Current |
| 9620 | 50V, 250V, 500V, 1KV, 2.5KV, 5KV | 0.005MΩ~10.0TΩ | >7mA MAX |
| 9620B | 50V, 250V, 500V, 1KV, 2.5KV, 5KV, 10KV | 0.005MΩ~20.0TΩ | >7mA MAX |
| 9620C | 50V, 250V, 500V, 1KV, 2.5KV, 5KV, 10KV, 15KV | 0.005MΩ~30.0TΩ | >7mA MAX |
| Output Voltage | Insulation Resistance Rage | Accuracy | Remark |
| 50V | 0.005MΩ~10.0GΩ | ±5%rdg±3dgt | |
| 10.0GΩ~100GΩ | ±10%rdg±3dgt | ||
| 250V | 0.05MΩ~50.0GΩ | ±5%rdg±3dgt | |
| 50.0GΩ~500GΩ | ±10%rdg±3dgt | ||
| 500V | 0.1MΩ~100GΩ | ±5%rdg±3dgt | |
| 100GΩ~1.00TΩ | ±10%rdg±3dgt | ||
| 1000V | 0.5MΩ~200GΩ | ±5%rdg±3dgt | |
| 200GΩ~2.00TΩ | ±10%rdg±3dgt | ||
| 2.5kV | 1MΩ~1TΩ | ±5%rdg±3dgt | |
| 1TΩ~5.00TΩ | ±10%rdg±3dgt | ||
| 5kV | 2MΩ~2.00TΩ | ±5%rdg±3dgt | |
| 2.00TΩ~10.0TΩ | ±10%rdg±3dgt | ||
| 10kV | 5MΩ~4.00TΩ | ±5%rdg±3dgt | |
| 4.00TΩ~20.0TΩ | ±10%rdg±3dgt | ||
| 15kV | 10MΩ~6.00TΩ | ±5%rdg±3dgt | |
| 6.00TΩ~30.0TΩ | ±10%rdg±3dgt |
1 TΩ(Tera ohm)=1000GΩ=1012Ω
1 GΩ(Giga ohm)=1000MΩ=109Ω
1 MΩ(Mega ohm)=1000KΩ=106Ω
| Function | Insulation resistance measurement (IR); polarization index measurement (PI); Dielectric absorption ratio (DAR); Step test (STEP); Ramp test(RAMP); Dielectric discharge index(DD); Voltage test(V); Capacity test(uF) |
| Power Supply | Rechargeable lithium battery 6.2Ah 14.8V |
| Output Voltage Gear |
9620:50V, 250V, 500V, 1kV, 2.5kV, 5kV 9620B:50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV 9620C:50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV |
| Custom Setting Voltage | 9620: 40~5kV,9620B:40V~10kV,9620C: 40V~15kV |
| Output Voltage Accuracy | (5%～10%)±10V |
| Insulation Resistance Test Range |
9620:0..005MΩ～10.0TΩ 9620B:0.005MΩ～20.0TΩ 9620C:0.005MΩ～30.0TΩ |
| Output Short Circuit Current | ≥7mA |
| Polarization Index Test | Yes |
| Dielectric Absorption Ratio Test | Yes |
| Step Mode (STEP) | Yes |
| Ramp mode(RAMP) | Yes |
| Dielectric discharge index(DD) | Yes |
| Voltage Test |
Range: DC:0V~800V；Accuracy: ±5%rdg±3V Range: AC: 0V~700V; Accuracy: ±5%rdg±3V |
| Capacitance Test | Range:10nF～200uF；Accuracy: ±10%rdg±10nF |
| Real Time Current Display | Display test current value, current display range: 0.001nA～7.5mA |
| Real Time Voltage Display | Real time monitoring the voltage of the tested terminal,In the non-test state, when the voltage is larger than 36V, the test is prohibited to protect the safety of the instrument and the operator. |
| Test Timer | Automatic record test time, time range: 0s~9999s |
| Test Time | After selecting the DAR, PI, DD test options, the test will be stopped immediately after the test result is obtained; in the custom test mode, the test duration can be set by user; in the normal test mode, the test time is not limited, and the operator can manually stop the test. |
| Custom Setting Time | 10s~3600s |
| Store Function | Automatically store the test data, which can reply the test record in tester |
| USB Communication | Yes, the test record can upload to the PC through USB cable |
| Bluetooth Communication | Yes, can be connected to Android phones or other devices with Bluetooth communication function. |
| Battery Power Display | With battery power display, when battery voltage low will remind to charge in time |
| Automatic Shutdown | After 15 minutes start up will shut down automatically without any operation |
| Tester Dimension | 280mm×260mm×160mm |
| Tester Weight | Host: 4326g (include the battery); Total weight: 6.96kg (Accessories) |
| Protection Level | Close the case IP65, open the case IP40 |
| Working Environment | -20℃～50℃；80%rh |
| Store Environment | -25℃～65℃；80%rh |
| Insulation Resistance | 50MΩ(1000v)(between the test circuit and shell) |
| Withstand Voltage | AC 3kV 50Hz 1min(between the test circuit and shell) |
| Suitable Safety Standard | IEC61010-1,IEC61326-1 |
