Product Details:
|
| Color: | Orange And Black | Size: | 186*92*52mm |
|---|---|---|---|
| Product Name: | Digital Multimeter | Model No.: | VC9802A+ |
| Product Packing: | Color Box | Packing Details: | 30pcs/Carton; Carton Size:46.5*31.7*50.6 |
| Display: | LCD Display With Backlight, 1999 (3 1/2 Digit) | Material: | Plastic, Metal, Silica Gel |
| High Light: | Vc9802a+ Digital Multimeter,Victor resistance multimeter,victor vc9802a+ |
||

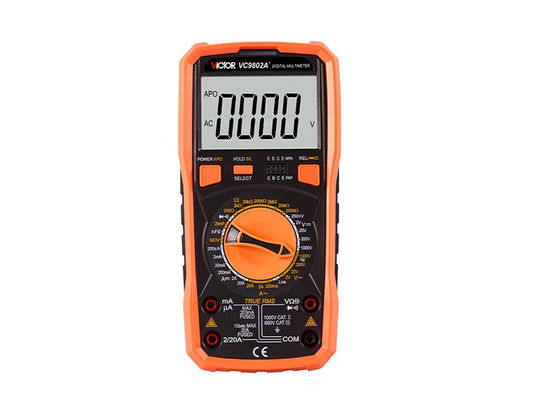

VC9802A+ Digital Multimeter Manual Range True RMS Frequency 20MHz and capacimetro Transistor tester with multitester wires
1. GENERAL
The instrument is a stable and high performance digital multimeter driven by battery. It uses the LCD with 28mm digit high make the reading clearly. And the function of back light and overload protection make operation more convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, and diode, triode and continuity test, live wire test, auto-power off, backlight, etc. The instrument takes dual-integral A/D converter as key point, is an excellent tools.
2. OPEN PACKING FOR CHECKING
Open the box, take out the meter, checking the items below if they are missing or damaging:
1.5V AAA LR03 Battery 4pcs
Instruction 1pc
Test leads 1pair
3. GENERAL SPECIFICATION
” symbol displaysTechnical Data
| Basic Function | Range |
VC9801A+ VC9802A+ |
VC9804A+ |
| DC Voltage | 200mV | ±(0.5%+5) | ±(0.5%+5) |
| 2V/20V/200V | ±(0.5%+3) | ±(0.5%+3) | |
| 1000V | ±(1.0%+10) | ±(1.0%+10) | |
| AC Voltage | 2V/20V/200V | ±(0.8%+5) | ±(0.8%+5) |
| 1000V | ±(1.2%+10) | ±(1.2%+10) | |
| DC Current | 200uA/2mA/20mA/200mA | ±(1.2%+8) | ±(1.2%+8) |
| 2A | ±(1.5%+10) | ||
| 20A | ±(2.0%+5) | ±(2.0%+5) | |
| AC Current | 200mA | ±(1.5%+15) | ±(1.5%+15) |
| 2A | ±(2.0%+5) | ||
| 20A | ±(3.0%+10) | ±(3.0%+10) | |
| Resistance | 200Ω | ±(0.8%+5) | ±(0.8%+5) |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±(0.8%+3) | ±(0.8%+3) | |
| 20MΩ | ±(1.0%+25) | ±(1.0%+25) | |
| 200MΩ | ±(5.0%+30) | ±(5.0%+30) | |
| Capacitance | 6uF | ±(5.0%+40) | ±(5.0%+40) |
| 60nF/600nF/6uF/60uF | ±(3.5%+20) | ±(3.5%+20) | |
| 600uF/6mF | ±(5.0%+10) | ±(5.0%+10) | |
| 20mF | ±(5.0%+40) | ±(5.0%+40) | |
| Frequency | 10Hz | ±(1.0%+10) | |
| 100Hz | |||
| 1kHz | |||
| 10kHz | |||
| 100kHz | |||
| 1MHz | |||
| 20MHz | |||
| Temperature | (-20~1000)℃ | √ | |
| (-4~1832)℉ | |||
| Special Function | |||
| Diode/Transistor | √ | √ | |
| Triode hEE | √ | √ | |
| Continuity Buzzer | √ | √ | |
| Low battery indication | √ | √ | |
| Data Hold | √ | √ | |
| Auto power off | √ | √ | |
| Backlight | √ | √ | |
| Function protection | √ | √ | |
| 200mA protection | √ | √ | |
| Square wave output | √ | √ | |
| Input impedance | 10МΩ | 10МΩ | |
| Sampling rate | 3 times/s | 3 times/s | |
| AC Frequency response | 40-1000Hz | 40-1000Hz | |
| Operation way | Manual range | Manual range | |
| Max. Display | 1999 | 1999 | |
| LCD Size | 70*50mm | 70*50mm | |
| Battery |
1.5V AAA LR03 Battery |
||
General Characters
| Product Color | Case: black ; Holster color: orange |
| Product Net Weight | Approx.320g |
| Product dimension | 186*92*52mm |
| Standard Accessories | Test leads , battery ,instruction manual |
| Standard Quantity Per Carton | 30Pcs |
| Standard inner packing | Color box |
| Carton Size | 465*317*506mm |
| Standard Gross Weight | Approx. 20kg |
