Product Details:
|
Color: | Orange And Black | Size: | 178*86*52mm |
---|---|---|---|
Product Name: | Digital Multimeter | Model No.: | VC890D |
Product Packing: | Color Box | Packing Details: | 30pcs/Carton; Carton Size:42.5*30.5*43cm |
Display: | LCD Display With Backlight, 1999 (3 1/2 Digit) | Material: | Plastic, Metal, Silica Gel |
High Light: | 20 Amp Digital Multimeter,Victor Vc890d Digital Multimeter,victor vc890d |

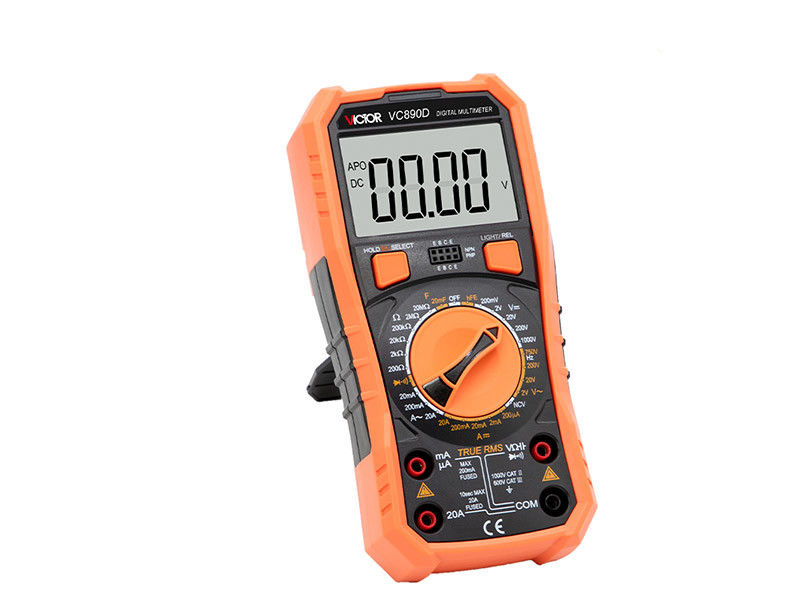

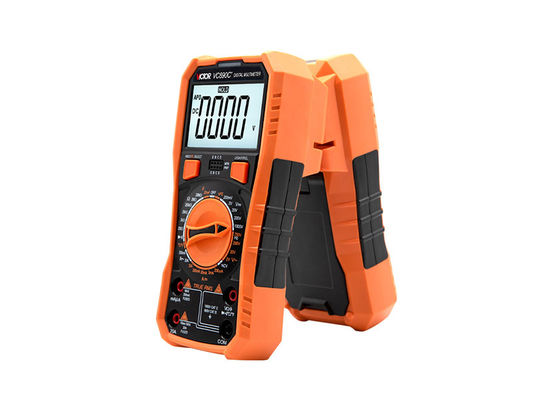

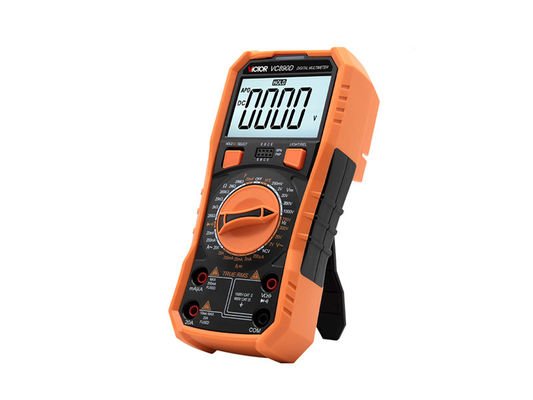

20 Amp Digital Multimeter Resistance Measurement Victor Vc890d
VC890D Digital Multimeter 2000 Counsts Manual Range True RMS Capacitance Resistance Transistor 1000V 20A 2mF
SUMMARIZE
This meter is a stable multimeter with 28mm LCD display, driven by battery. It's widely used on measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, diode, transistor, continuity test and with the function of auto power off and backlight . The meter takes integrated circuit as the core. It’s an ideal tool for lab, factory, wireless lover and family.
2. OPEN PACKING FOR CHECKING
Open the box, take out the meter, check the items below if they are missing or damaging:
1.5V AA LR6 Battery * 2pcs; Manual * 1pc; Test lead * 1pair
Please contact with your supplier, if you find out any problems.
3. SAFETY NOTE
The meter meets the standards of IEC61010 (the safety standards or equal GB4793.1 standards request issued by IEC) Read the operation manual carefully before operation.
3-1.Do not input limit over-ranged.
3-2.The voltage below 36V is safety. To avoid electric shock, check whether the test leads connection is correct and insulation is fine when measuring over 36V DCV or 25V ACV. When input over 24V ACV or DCV, the warning symbol for high voltage will display3-3.Remove the test leads when changing function and range.
3-4.To select correct function and range, beware of error operation; For your safety please note, although there is protective function of whole range for this series meters.
3-5.Do not operate the meter if the battery and back cover is not fixed.
3-6.Do not input voltage when measuring resistance, capacitance, diode, continuity test.
3-7.Remove test leads from test point and turn off the power before replacing battery and fuse.
Technical Data
Basic Function | Range | Accuracy | |
DCV | 200mV/2V/20V/200V | ±(0.5%+3) | |
1000V | ±(0.8%+10) | ||
ACV | 2V/20V/200V | ±(0.8%+5) | |
750V | ±(1.2%+10) | ||
DCA | 200uA/2mA/20mA | ±(0.8%+10) | |
200mA | ±(1.2%+8) | ||
20A | ±(2.0%+5) | ||
ACA | 20mA | ±(1.0%+15) | |
200mA | ±(2.0%+5) | ||
20A | ±(3.0%+10) | ||
Resistance | 200Ω | ±(0.8%+5) | |
2kΩ/20kΩ/200kΩ/2MΩ | ±(0.8%+3) | ||
20MΩ | ±(1.0%+25) | ||
Capacitance | 6nF | ±(5.0%+40) | |
60nF/600nF/6uF/60uF | ±(3.5%+20) | ||
600uF/6mF/20mF | ±(5.0%+10) | ||
Special Function | VC890D | ||
Diode & Continuity test | √ | ||
Backlight | √ | ||
Continuity buzzer | √ | ||
Low battery indication | √ | ||
Auto power off | √ | ||
Function protection | √ | ||
200mA/20A Protection | √ | ||
TRUE RMS | √ | ||
Shock proof protection | √ | ||
Input impedance | About 10MΩ | ||
Sampling rate | 3 times/s | ||
Frequency response | (40-1000)Hz; | ||
Operation way | Manual Range | ||
Max. Display | 1999 | ||
LCD size | 61 x 36mm | ||
Battery | 2*1.5V AA LR6 | ||
General Characters | |||
Product Color | Case: black ; Holster color:orange | ||
Product Net Weight | Approx .358g (including battery) | ||
Product Dimension | 178*86*52mm | ||
Standard Accessories | Test leads,battery,manual | ||
Standard inner packing | Color box | ||
Carton size | 435*335*425mm | ||
Standard Quantity /Carton | 30Pcs | ||
Standard Gross Weight | Approx .18.2kg |
