Product Details:
|

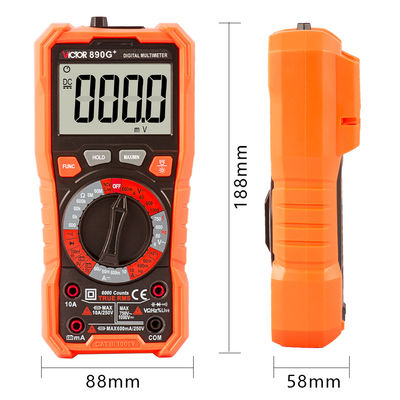

Color: | Orange And Black | Size: | 188*88*58mm |
---|---|---|---|
Product Name: | Digital Multimeter | Model No.: | 890G+ |
Product Packing: | Color Box | Packing Details: | 30pcs/Carton; Carton Size:48*39.5*52.6cm |
Display: | LCD Display With Backlight, 5999 Counts | Material: | Plastic, Metal, Silica Gel |
High Light: | VICTOR 890G+Manual Ranging Digital Multimeter,EN61010-1 Manual Ranging Digital Multimeter,6000 Counts VICTOR Digital Multimeter |

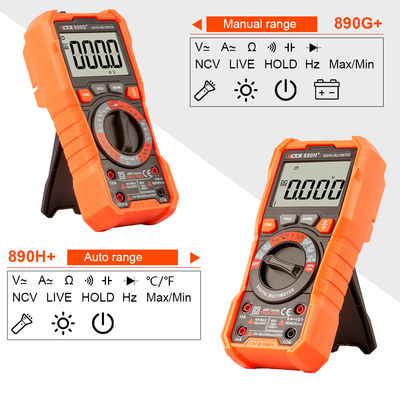

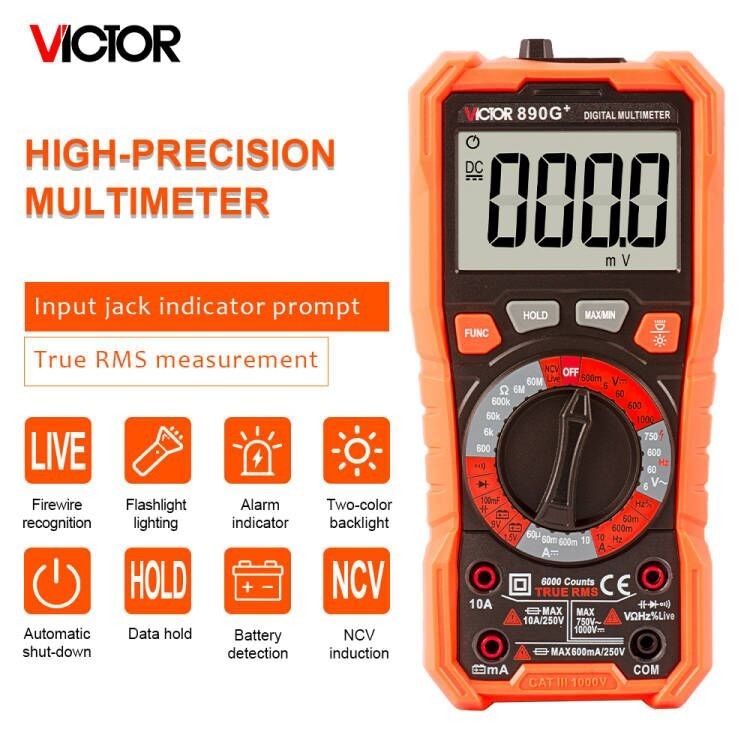

VICTOR 890G+ Digita Multimeter High Precision 6000 counts Manu Range Tester True RMS Intelligent Anti-burning NCV Universal Multimeter
Features:
This 890G Multimeter Wide Measuring Range: for measuring DC/AC voltage, DC/AC current, Resistance, Capacitance, Diode test, NCV test, Live test, Frequency, etc.
2.7" Large LCD Display: 59*36mm LCD screen with large digital-readout and backlight for clear reading.
Auto Power-off: 15mins automatic shutdown if there's no operation, more power saving.

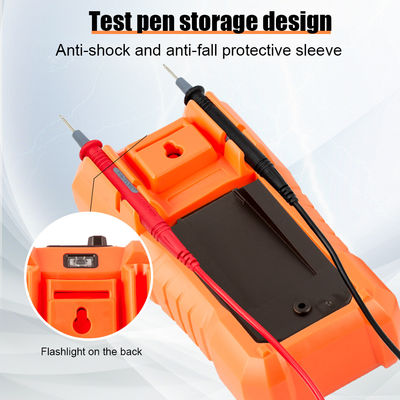

Portable Design: bracket at the back for supporting multimeter, and it also can be hanging on the wall.
Overload Protection: built-in double fuse, full protection for safe operation.
Other Functions: Bargraph, Max/Min hold, Data hold, Continuity, True RMS, Low battery indication, Double color backlight, Input jack LED indicate, work light, etc.
Specifications:
Material: ABS
Display: 6000 counts
Range: Manual range
Display: LCD
Bandwidth: 1kHz
Safety Rating: EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V
Package List:
1 * Digital Multimeter
1 * Pair of Test Lead
1 * Manual (English)
Techincal Data
Basic function | Range | Accuracy |
VICTOR 890G+ | ||
DCV | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
ACV | 6V/60V/600V/750V | ±(0.8%+5) |
DCA | 60μA/60mA/600mA/10A | ±(1.2%+3) |
ACA | 60mA/600mA/10A | ±(1.5%+3) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ | ±(1.0%+3) |
6MΩ/60MΩ | ±(1.5%+3) | |
Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF | ±(4%+5) |
10mF/100mF | ±(5%+5) | |
Frequency/duty cycle | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz | ±(1.0%+3) |
10MHz/1~99% | ±(3.0%+3) | |
Special function | ||
NCV test | √ | |
Live wire test | √ | |
Battery test | √ | |
Input terminal prompt | √ | |
High voltage prompt | √ | |
Diode test | √ | |
Continuity alarm | √ | |
Low battery | √ | |
Backlight | √ | |
Flashlight | √ | |
Auto power off | √ | |
Function protection | √ | |
shakeproof protection | √ | |
Input impedance | 10MΩ | |
ACV frequency response | 10Hz ~ 1kHz | |
Operation method | Manual range | |
Display | 6000 count | |
Supply | Battery 2*1.5V AA |
